 Primare

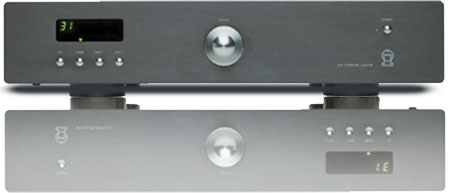

Transistor Amplifier |
|
|
|
| |
|
FEATURE:
|
| |
| MODEL |
I 20
|
|
SPECIFICATIONS
|
|
Output power per channel
|
2 x 70W into 8Ω, 2
x 110W into 4Ω |
|
Speaker terminals
|
4 –16Ω |
|
Output impedance
|
<0.08Ω |
|
DC offset
|
<5mV |
|
Line inputs
|
330mV |
|
Tape outputs
|
300mV |
|
Frequency response
|
<10Hz – 100kHz, -3dB |
|
THD |
0.08% (1kHz, 10V into
8Ω) |
|
Signal-to-noise,
|
line -98dB (A-weighted) |
|
Power consumption,
standby |
<16W |
|
Peak current
|
±20A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
