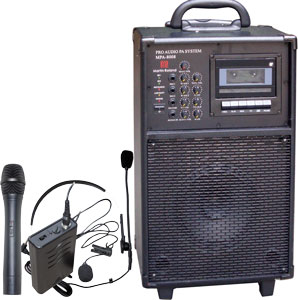

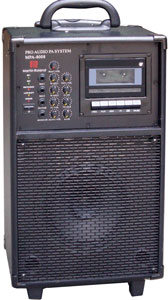

Portable Public Address System |
|
|
|
| |
|
FEATURE
| |
Cassette Player |
|
Dual Channel |
| |
Dual Mic Jack
Input |
|
|
|
| |
| Model |
MPA 8008
|
|
SPECIFICATIONS
|
| Power Supply |
AC 220V~240V 50
Hz |
|
Frequency Response |
33 Hz ~ 20KHz |
| SPL |
94 dB (1W/M) |
|
T.H.D |
< 1% |
| Input Wire Mic |
-58 dBV 600 |
|
Speaker |
8" Full Range Speaker |
| RMS power |
80 W |
|
Input Jack |
2 x 1/4" Wired Micophone |
| |
1 x 1/4" Guitar
In Jack |
|
|
1 x Audio Input Jack |
|
|
|
|

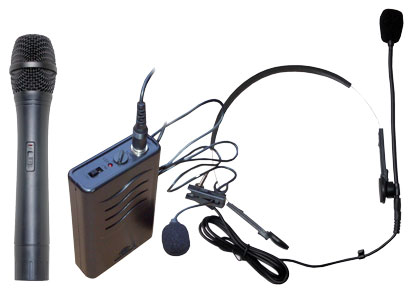

Receiver
|
|
Carrier Frequency
Range |
160 ~ 270 MHz |
| RF Sensitivity |
≤ -101 dB |
|
Image Rejection |
≥ 60 dB |
| S/N Ratio |
≥ 65 dB |
Operation Range
|
30 M
|
|
Transmitter |
|
Carrier Frequency |
160~270 MHz |
| RF Power output
|
≤ 10 mW |
|
Modulation Level |
15 K |
| Operation Temperature |
-18°C ~ 60°C |
|
Power Supply |
9V |
| Mic Battery Life |
About 10 Hours |
|
| |
|
| |
|
|
