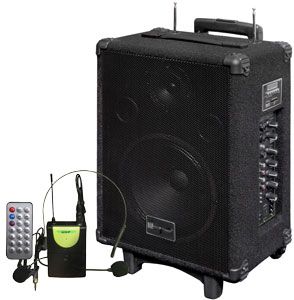

  Full Product

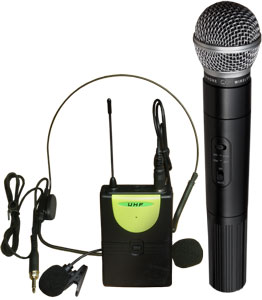

  Microphone
  Remote
SHARE IT ›››





























   Portable Public Address System



FEATURE

  Dual Channel     USB input     SD card Input
  MP3     DISPLAY     FM Radio


 Model

MAU 8

SPECIFICATIONS
Driver 8" Woofer 3" Tweeter
Mic Input 5~ 150 mV / 600 Ω
Audio Input 50 ~ 700 mV / 47 KΩ
Audio Output 700 mV / 47Ω
Mic Input 50 Hz ~ 15 KHz ± 2dB
Audio Input 50 Hz ~ 15 KHz ± 2dB
Low Frequency Response ± 12dB
High Frequency Response ± 12dB
Impedance / REC 8 Ω / 4Ω Recommended
Output Power Load 100 W @8Ω
180 W @ 4Ω
AC Input 220 V / 50 Hz
DC power input 12 V
Battery Power 12 V
Battery Cap 4.5 AH
Operating Range 30 ~ 80 M
Carrier Frequency Range 200 ~ 280 MHz
S/N Ratio ≥ 80 dB
Receiver Mode Quartz Control
Transmitter Power 10 mW
Transmitter Supply 9V
Transmitter Cons 25 mA
Vice-Harmonic < 40 dB
