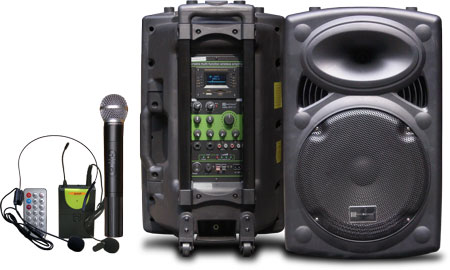

Portable Public Address System



FEATURE

  Dual Channel     USB input     FM RADIO
  MP3     DISPLAY

 Model

MAU 12

SPECIFICATIONS

Woofer 12"
Tweeter 3"
Power Output 200 W
SPL 95 dB (1W/M)
T.H.D < 1%
MIC Sensitivity/Impedance 5 ~ 150mV / 600 Ω
Audio Sensitivity/Impedance 700 mV / 47 K Ω
Audio Output level/Impedance 700 mV / 47 K Ω
Mic Input Freq.  Response 50 Hz ~ 15 KHz ± 2 dB
Audio Input Freq. Response 20 Hz ~ 20 KHz ± 0.5 dB
Volume Control Freq. Response ±12 dB
Output Carrier Impedance Range 4 ~ 8 Ω
Max Output Power 8 Ω Load 100 W
Max Output Power 4 Ω Load 200 W
AC Input Power

AC 220 V 50 Hz


MP3 PLAYER

S/N Ratio 85 dB(A)
Freq. Response 20 Hz ~ 20 KHz


TUNER

Freq. Modulation 87 ~ 108 MHz
Medium Frequency 10.7 MHz
Sensitivity 22 dB
Selectivity 45 dB(400 KHz)
S/N Ratio 60 dB
System Distortion (1 KHz) < 1 %
Resolution (1 KHz) 35 dB
Freq. Response 30 ~ 15,000 Hz

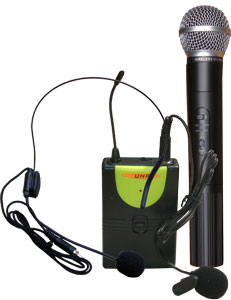

WIRELESS MICROPHONE

Transmitter Power 10 mW
Receiver Distance 30 ~ 70 M
