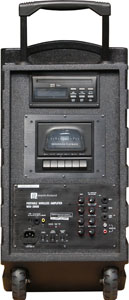

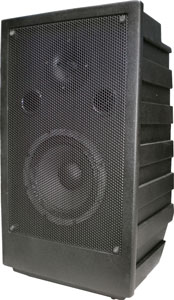

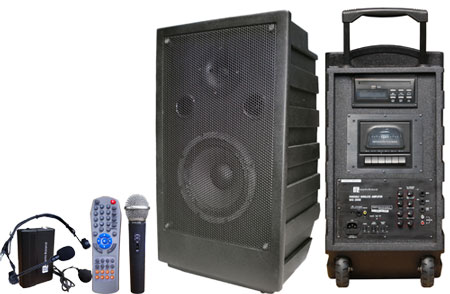

Portable Public Address System |
|
|
|
| |
FEATURE
| |
DVD |
|
|
VCD |
|
|
CD Audio |
| |
L & R RCA Input |
|
|
Video ouput |
|
|
Dual Channel |
| |
Dual Mic Jack
Input |
|
|
Cassette |
|
|
USB Input |
|
| |
|
Model |
MAD 2006 USB
|
|
SPECIFICATIONS
|
|
Frequency Range |
UHF 500 ~ 600 MHz |
| Frequency Stability |
±0.005% Quartz
controlled |
|
Modulation |
± 20KHz |
| Frequency Response |
50 Hz ~ 18 KHz
± 3dB |
|
Hum & Noise |
100 dB ± 3dB (RF 1mV) |
| Dynamic Range |
min 100 dB |
|
Distortion |
< 0.5% (5W) |
| Rechargeable Battery |
12V 5A * 2 |
| |
|
|
Quartz controlled
fixed frequency Receiving mode |
| Sensitivity
|
10 dBµV (S/N 60
dB) |
|
Image and Spurious
Rejection |
Min 80 dB |
| Output |
unbalanced 250
mV 600Ω |
|
Receiving System |
Single & Dual Channel |
| Input Signal
|

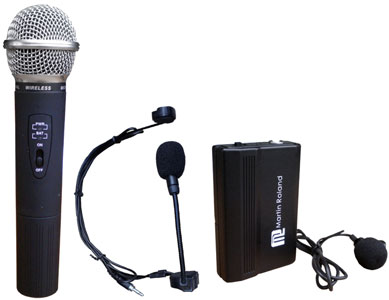

Wired , wireless
MIC, Audio-in |
|
Output Signal |
recording signal Line
Out |
| Power Output |
80 W (max) |
|
Power Source
|
AC 220 V & 24 V DC |
| Current Consumption |
Max 4 A |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
