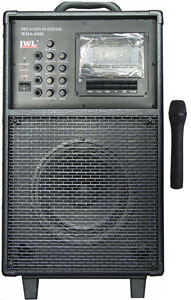

Wireless Portable P.A System |
|
|
|
| |
|
FEATURE:
- Cassette Tape Player
/ Record
- Single Channel
|
| |
Model |
WMA
8480
|
|
SPECIFICATIONS
|
|
Carrier Frequency |
160 ~ 270 MHz |
|
RF Power Output |
< 10 mV |
|
Modulation Level |
15 KHz |
|
Operation Temperature |
-18°C - 60°C |
|
Power Supply |
AC 220~240V /50Hz |
|
Built in
|
12 V 7 AH Rechargeable
Battery |
|
Frequency Response |
35 Hz ~ 20KHz |
|
SPL |
94 dB 1 W/M |
|
T.H.D |
< 1% |
|
Input Wired Microphone |
-58 dBV 600 |
|
Speaker |
8" Full Range
Speaker |
|
RMS Power Ouput |
150W |
Input
|
2 x Wired Mic
1 x 1/4" Guitar in jack
1 x Audio Jack input
|
|
Transmitter |
|
Frequency Range
VHF |
165 MHz ~ 270
MHz |
|
RF Sensitivity |
≤ -101 dB |
|
Image Rejection |
≥ 60 dB |
|
S/N Ratio |
≥ 65 dB |
|
Operation |
100 FT |
|
Power Supply |
9V |
|
Mic Battery Approx. |
45 Hrs |
|
| |
|
| |
|
|
