 Professional
Mixer |
|
|
|
| |
|
FEATURE:
- High grade rotary
potentiometers and fader
- Well-known excellent
OP AMP JRC 4560
- Built-in Phantom
power +48V
- Built-in Dark field
lighting
- Stereo line input
concurrent with the Mic
- Channel quantity
see chart
- It has CE,ETL certificate
- Set a PFL function
in each channel
|
| |
|

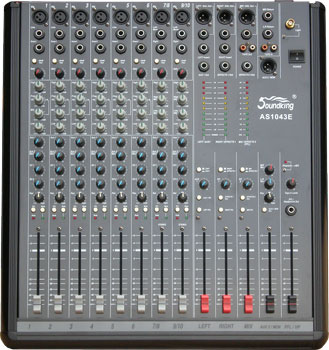

Model
|
AS 1043 E
|
|
SPECIFICATIONS
|
|
T.H.D |
<0.1% |
|
Equivalent input noise
level |
-125dB unweighted |
|
Mic Input Channels |
6 |
Stereo Input
(Concurrent
with Mic CH) |
4 (with Mic x 2) |
|
L/R output |
2 |
|
Mix output |
1 |
|
AUX output |
2 |
|
EEF output |
2 |
|
MIX, S/R Return |
2 |
|
Tape In/Out |
2 |
| Mono
Channel |
Low-Z Mic
|
1
KΩ input Impedance |
|
|
High-Z Mic |
10 KΩ input impedance |
| Stereo
Channel |
Low-Z Mic |
1
KΩ input Impedance |
|
|
High-Z Mic |
10 KΩ input Impedance |
| Mono
Channel EQ |
Low |
±15dB
80Hz shelving |
|
|
Sweepable Mid |
±15dB 250Hz - 3.5Khz
peak |
| |
High |
±15dB
12KHz - shelving |
|
Stereo Channel EQ |
Low |
±15dB 80Hz shelving |
| |
Low Mid |
±15dB
900Hz peak |
|
|
High |
±15dB 12KHz shelving |
| |
High Mid |
±15dB
3.5KHz peak |
|
Equivalent Input Noise |
Typically <-131 dB
@ 20 ~ 12 KHz equivalent bandwidth unweighted with
200 Ω source impedance |
|
Common Mode Rejection |
Typically
-90 dB min,
-70 dB @ 50 Hz |
|
Peak Indicator |
Indicateds 6dB headroom
remaining |
|
Maximum Signal Accepted |
LOW-Z
Mic 3.46V RMS(13 dBV) |
| |
HIGH-Z Line 15.9V
RMS(26 dBV) |
Channel Gain
|
Typically
52 dB adjustment range
|
|
Channel Input Sensitivity
|
|
LOW-Z Mic |
All
levels up |
8.7mV
RMS max. (43 dB gain) |
| |
Channel up only |
2.7 mV max. (53 dB
gain) |
| |
All
levels "+10" |
28mV
RMS max. (73 dB gain) |
|
High - Z |
All levels up |
87mV RMS max (23 dB
gain) |
| |
Channel
up only |
27
mV RMS max. (33dB gain) |
| |
All levels "+10" |
28 mV RMS max
(53 dB gain) |
| |
|
|
|
AUX/EFFECTS
RETURNS / TAPE INPUTS
|
|
1/4" phone jacks |
15
K Ω input impedance |
|
RCA jacks |
15 K Ω input impedance |
|
Max Sensitivity |
-20
dBV (80mV RMS) |
|
Max Input Accepted |
+30 dBV (24.5 V RMS) |
| |
|
|
AUX EFFECTS OUT/TAPE
OUT
|
|
1/4" phone jacks |
+4
dBv(1.23V RMS) @ HIGH-Z nominal output) |
|
RCA jacks
|
+4 dBv (1.23 V RMS)
@ High-Z nominal output |
Phantom Power
|
+48
VDC applied to pins 2 and 3 of XLR inputs
|
|
LEFT & RIGHT
OUTPUTS
|
|
Unbalanced out |
10K
Ω load impedance |
|
Balanced |
3 K Ω load impedance |
|
Nominal output |
+4
dBv(1.23V RMS) nominal output |
|
Output |
18 dBv (6V RMS) max
output |
| |
|
|
OUTPUT LED INDICATORS
|
|
Type |
10
LED quasi-peak |
|
Calibration |
Calibrated to indicate
+4 dBV @ 7th LED |
|
Range |
-18
dBV to +13 dBv |
|
Signals Read |
Left Main Out,
Right Main Out,
Aux 1 Out,
Effects 1 out,
Mix out,
Effects 2 out |
|
Residual Noise |
90
dB below 1.23 V RMS min. With all level down |
| |
60 dB below 1.23 V
RMS with Master level up full and one channel up
full |
|
Total Harmonic Distortion |
<0.1% 1 KHz input
@5V RMS output |
|
| |
|
| |
|
|
