ACTIVE BI-AMPING
|
| |
|
FEATURE:
|
| |
|
Model |
ST-5A
|
|
SPECIFICATIONS
|
|
Driver |
5" magnetically shield
mineral-filled polypropylene cone with high temperature
voice coil and damped rubber surround |
| Tweeter |
3/4"
magnetically shield ferrofluid-cooled natural soft
dome |
|
Frequency Response |
70 - 20KHz |
| Crossover |
2.6K |
|
SPL |
88dB (1w&1m) |
| Low Frequency
Amplifier |
60W |
|
High Frequency Amplifier |
30W |
| Input Connections |
XLR
and 1/4" connector;accept balanced or unbalanced
source |
|
IndicatoR |
Power ON LED indicator |
| Power Requirements |
220/240V-50/60Hz
0.5A 100W 100/120V-50/60Hz 1A 100W |
|
Input Sensitivity |
0.775V Input produces
full of output level at maximum |
| Cabinet |
18mm
MDF,Internally insulated |
|
|
Model |
ST-6A
|
|
SPECIFICATIONS
|
|
Driver |
6.5" magnetically
shield mineral-filled polypropylene cone with high
temperature voice coil and damped rubber surround |
| Tweeter |
1"
magnetically shield ferrofluid-cooled natural soft
dome |
|
Frequency Response |
50 - 20KHz |
| Crossover |
2.6K |
|
SPL |
89dB (1w&1m) |
| Low Frequency
Amplifier |
80W |
|
High Frequency Amplifier |
40W |
| Input Connections |
XLR
and 1/4" connector;accept balanced or unbalanced
source |
|
IndicatoR |
Power ON LED indicator |
| Power Requirements |
220/240V-50/60Hz
0.5A 100W 100/120V-50/60Hz 1A 100W |
|
Input Sensitivity |
0.775V Input produces
full of output level at maximum |
| Cabinet |
18mm
MDF,Internally insulated |
|
|

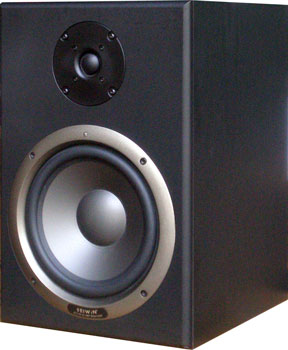

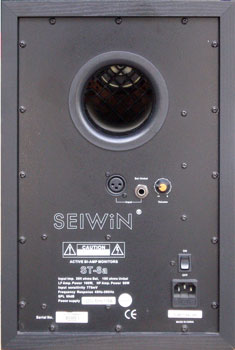

Model |
ST-8A
|
|
SPECIFICATIONS
|
|
Driver |
8" magnetically shield
mineral-filled polypropylene cone with high temperature
voice coil and damped rubber surround |
| Tweeter |
1"
magnetically shield ferrofluid-cooled natural soft
dome |
|
Frequency Response |
90 - 20KHz |
| Crossover |
2.6K |
|
SPL |
90dB (1w&1m) |
| Low Frequency
Amplifier |
100W |
|
High Frequency Amplifier |
50W |
| Input Connections |
XLR
and 1/4" connector;accept balanced or unbalanced
source |
|
IndicatoR |
Power ON LED indicator |
| Power Requirements |
220/240V-50/60Hz
0.5A 100W 100/120V-50/60Hz 1A 100W |
|
Input Sensitivity |
0.775V Input produces
full of output level at maximum |
| Cabinet |
18mm
MDF,Internally insulated |
|
| |
|
| |
|
|
