 Professional
Mixer |
|
|
| |
|
FEATURE:
- 8 State of art
phantom powered mic preamp
- 8 Studio grade
compressors with super easy "one knob" functionality
and control led for vocal and instrumental
- 3 AUX Send per
channel
- 1 Pre/post
for monitor ,1 Pre/post fader switchable for monitoring
/FX applications, 1 post fader for internal and
external
- 130 dB dynamic
range for an incredible amount of headroom
- A bandwidth ranging
from below 10 Hz to over 200 KHz for crystal-clear reproduction
of even the finest nuances
- The extremely low-noise
and distortion-free circuitry guarantees absolutely
natural and transparent signal reproduction
- They are perfectly
matched to every conceivable microphone with up to 60
dB gain and +48 Volt phantom power supply
- They enable you
to use the greatly extended dynamic range of your 24-bit
192 KHz HD recorder to the full, thereby maintaining
optimal audio quality
- British EQ
- 24 Bit A/D and
D/A converters, 16 presets producing first class reverb,
delay and modulation effects plus numerous multi-effects
in excellent audio quality
- Switched-mode power
supply, optimum supply current regardless of input voltage.
Uses less energy than conventional power supplies
- USB Feature IN/Out
for Record and playback.
|
| |
|

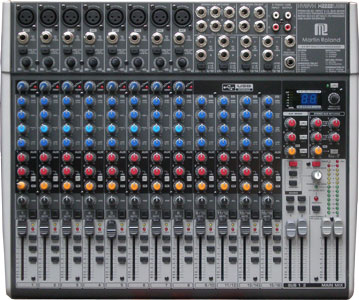

Model |
X 2222 USB
|
|
SPECIFICATIONS
|
| Type |
XLR,
electronically balanced,
discrete input circuit |
|
Mic E.I.N (20
Hz ~ 20 KHz) |
|
| @
0 Ω Source resistance |
-134
dB/ 135.7 dB A Weighted |
|
@ 50 Ω Source resistance |
-131 dB / 133.3 dB
A Weighted |
| @
150 Ω Source resistance |
-129
dB / 130.5 dB A Weighted |
|
Frequency Response |
< 10 Hz ~ 150 KHz
(-1 dB)
< 10 Hz ~ 200 KHz (-3 dB) |
| Gain
range |
+10
to + 60 dB |
|
Max. input level |
+12 dBu @ +10 dB Gain |
| Impedance |
approx.
2.6 KΩ balanced |
|
Signal-to-noise ratio |
110 dB/ 112 dB A weighted
( 0 dBu In @ + 22 dB gain ) |
| Distortion
(THD+N) |
0.005%
/ 0.004% A weighted |
|
Line input |
|
|
Type
|
¼"
TRS connector electronically balanced
|
|
Impedance |
approx. 20 KΩ balanced
10 KΩ unbalanced |
| Gain
range |
-10
+ 40 dB |
|
Max. input level |
30 dBu |
|
|
|
FADEOUT ATTENUATION |
|
Main
fader Closed
|
90
dB
|
|
Channel muted |
89 dB |
Channel fader closed
|
89 dB
|
|
Frequency Response |
|
Microphone Input
to main out |
|
|
<10 Hz ~ 90 KHz |
+0 dB / -1 dB |
|
<10 Hz ~ 160 KHz |
+0 dB / -3 dB |
|
Stereo inputs |
|
|
Type |
¼" TRS connector,
electronically balanced |
|
Impedance |
approx. 20 KΩ |
|
Max. input level |
+22 dBu |
|
EQ mono channels |
|
|
Low |
80 Hz / ± 15dB |
|
Mid |
100 Hz - 8 KHz / 15
dB |
|
High |
12 KHz / ± 15 dB |
|
EQ stereo channels |
|
|
Low |
80 Hz / ± 15dB |
|
Low Mid |
500 Hz / ± 15dB |
|
High Mid |
3 KHz / ± 15dB |
|
High |
12 KHz / ± 15dB |
|
Aux Sends |
|
|
Type |
¼" TS Connector, Unbalanced |
|
Impedance |
approx 120 Ω |
|
Max. output level |
+22 dBu |
|
Stereo aux returns |
|
|
Type |
¼" TRS connector,
electronically balanced |
|
Impedance |
approx. 20 KΩ bal.
/ 10 KΩ unbal. |
|
Max. input level |
+22 dBu |
|
Main outputs |
|
|
Type |
XLR electronically
balanced
¼" TS Connector unbalanced |
|
Impedance |
approx. 240 Ω symm.
120 Ω unbalanced
|
|
Max. output level |
+22 dBu |
|
Control room
outputs |
|
|
Type |
¼" TS connector unbalanced |
|
Impedance |
approx. 120Ω |
|
Max. output level |
+22 dBu |
|
Headphones outputs |
|
|
Type |
¼" TRS connector,
unbalanced |
Max. output level
|
+19 dBu / 150 Ω (+25
dBm)
|
|
DSP |
|
Converter |
24 bit Sigma-Delta,
64/128 times over sampling |
|
Sampling Rate |
40 KHz |
|
|
|
|
USB |
|
Audio |
Stereo In/Out |
|
Connector |
Type B |
|
Converter
|
16 bit |
|
Sample Rate |
48 KHz |
|
|
|
|
Main mix system data |
|
Noise |
|
Main mix @ -∞
Channel fader @ -∞ |
-101 dB |
Main mix @ 0 dB
Channel fader @ -∞ |
-93 dB |
Main mix @ 0 dB
Channel fader @ 0 dB |
-81 dB |
|
Power Supply |
|
|
Mains Voltage |
100 ~ 240 V ~ 50/60
Hz |
|
Power Consumption |
50 W |
|
Fuse |
100 ~ 240 V T 1.6A
H 250 V |
|
Main Connection |
Standard IEC receptacle |
|
| |
|
| |
|
|
