 Professional
Mixer |
|
|
| |
|
FEATURE:
- 4 State of
art phantom powered mic preamp
- 4 Studio grade
compressors with super easy "one knob" functionality
and control led for vocal and instrumental
- 2 AUX Send
per channel
- 1 Pre/post
fader switchable for monitoring /FX applications,
1 post fader for internal / external
- 130 dB dynamic
range for an incredible amount of headroom
- A bandwidth
ranging from below 10 Hz to over 200 KHz for crystal-clear
reproduction of even the finest nuances
- The extremely
low-noise and distortion-free circuitry guarantees
absolutely natural and transparent signal reproduction
- They are perfectly
matched to every conceivable microphone with up
to 60 dB gain and +48 Volt phantom power supply
- They enable
you to use the greatly extended dynamic range of
your 24-bit 192 KHz HD recorder to the full, thereby
maintaining optimal audio quality
- British EQ
- 24 Bit A/D
and D/A converters, 16 presets producing first class
reverb, delay and modulation effects plus numerous
multi-effects in excellent audio quality
- Switched-mode
power supply, optimum supply current regardless
of input voltage. Uses less energy than conventional
power supplies
- USB Feature
IN/Out for Record and playback.
|
| |
|

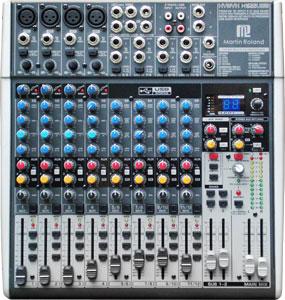

Model |
X 1622 USB
|
|
SPECIFICATIONS
|
|
Type |
XLR, electronically
balanced,
discrete input circuit |
|
Mic E.I.N
(20 Hz ~ 20 KHz) |
|
|
@ 0 Ω Source resistance |
-134 dB/ 135.7
dB A Weighted |
|
@ 50 Ω Source
resistance |
-131 dB / 133.3
dB A Weighted |
|
@ 150 Ω Source
resistance |
-129 dB / 130.5
dB A Weighted |
|
Frequency Response |
< 10 Hz ~ 150
KHz (-1 dB)
< 10 Hz ~ 200 KHz (-3 dB) |
|
Gain range |
+10 to + 60 dB |
|
Max. input level |
+12 dBu @ +10
dB Gain |
|
Impedance |
approx. 2.6 KΩ
balanced |
|
Signal-to-noise
ratio |
110 dB/ 112 dB
A weighted
( 0 dBu In @ + 22 dB gain ) |
|
Distortion (THD+N) |
0.005% / 0.004%
A weighted |
|
Line input |
|
|
Type
|
¼" TRS connector
electronically balanced
|
|
Impedance |
approx. 20 KΩ
balanced
10 KΩ unbalanced |
|
Gain range |
-10 + 40 dB |
|
Max. input level |
30 dBu |
|
|
|
|
FADEOUT ATTENUATION
|
|
Main fader Closed
|
90 dB
|
|
Channel muted |
89 dB |
Channel fader
closed
|
89 dB
|
|
Frequency Response |
|
Microphone
Input to main out |
|
|
<10 Hz ~ 90 KHz |
+0 dB / -1 dB |
|
<10 Hz ~ 160 KHz |
+0 dB / -3 dB |
|
Stereo inputs |
|
|
Type |
¼" TRS connector,
electronically balanced |
|
Impedance |
approx. 20 KΩ |
|
Max. input level |
+22 dBu |
|
EQ mono
channels |
|
|
Low |
80 Hz / ± 15dB |
|
Mid |
100 Hz - 8 KHz
/ 15 dB |
|
High |
12 KHz / ± 15
dB |
|
EQ stereo
channels |
|
|
Low |
80 Hz / ± 15dB |
|
Low Mid |
500 Hz / ± 15dB |
|
High Mid |
3 KHz / ± 15dB |
|
High |
12 KHz / ± 15dB |
|
Aux Sends |
|
|
Type |
¼" TS Connector,
Unbalanced |
|
Impedance |
approx 120 Ω |
|
Max. output level |
+22 dBu |
|
Stereo aux
returns |
|
|
Type |
¼" TRS connector,
electronically balanced |
|
Impedance |
approx. 20 KΩ
bal. / 10 KΩ unbal. |
|
Max. input level |
+22 dBu |
|
Main outputs |
|
|
Type |
XLR electronically
balanced
¼" TS Connector unbalanced |
|
Impedance |
approx. 240 Ω
symm.
120 Ω unbalanced
|
|
Max. output level |
+22 dBu |
|
Control
room outputs |
|
|
Type |
¼" TS connector
unbalanced |
|
Impedance |
approx. 120Ω |
|
Max. output level |
+22 dBu |
|
Headphones
outputs |
|
|
Type |
¼" TRS connector,
unbalanced |
|
Max. output level |
+19 dBu / 150
Ω (+25 dBm) |
|
DSP
|
|
Converter |
24 bit Sigma-Delta,
64/128 times over sampling |
|
Sampling Rate |
40 KHz |
|
|
|
|
USB |
|
Audio
|
Stereo In/Out |
|
Connector |
Type B |
|
Converter
|
16 bit |
|
Sample Rate |
48 KHz |
|
|
|
|
Main mix system
data |
|
Noise |
|
Main mix @ -∞
Channel fader @ -∞ |
-101 dB |
Main mix @ 0 dB
Channel fader @ -∞ |
-96 dB |
Main mix @ 0 dB
Channel fader @ 0 dB |
-83 dB |
|
Power Supply |
|
|
Mains Voltage |
100 ~ 240 V ~
50/60 Hz |
|
Power Consumption |
50 W |
|
Fuse |
100 ~ 240 V T
1.6A H 250 V |
|
Main Connection |
Standard IEC receptacle |
|
| |
|
| |
|
|
