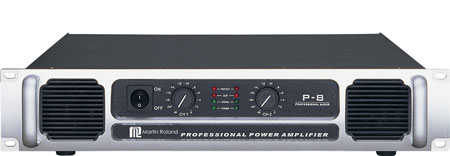

 Power
Amplifier |
|
|
|
| |
|
FEATURE:
- 2 Channels,
it can be bridged
- Time delay
starting protection and protections for the over
loading, over temperature, short circuit, loads.
etc
- Level indicator
in 2 x 4 LED, status indicator for power, bridge
and protection
- 2 Fan for cooling
- Power/Signal
and clip indicate
- Protected by:
DC safeguard output, over loading, startup bootstrap
short test
|
| |
|
Model |
P 3
|
P 4
|
P 5
|
|
SPECIFICATIONS
|
|
Output Power |
|
|
|
| |
8Ω |
2 x 300W |
2 x 400W |
2 x 500W |
| |
4Ω |
2 x 500W |
2 x 700W |
2 x 850W |
| |
2Ω |
2 x 800W |
2 x 1000W |
2 x 1300W |
|
Bridge Power Mono |
|
|
|
| |
8Ω |
1000W |
1250W |
1450W |
| |
4Ω |
1300W |
1700W |
1900W |
|
Input Impedance |
≥20 K Ω |
≥20 K Ω |
≥20 K Ω |
|
Frequency Response |
5 Hz ~ 50 KHz
± 3dB |
5 Hz ~ 50 KHz
± 3dB |
5 Hz ~ 50 KHz
± 3dB |
|
T.H.D |
0.05%
|
0.05%
|
0.05%
|
|
Switch Ratio |
40V / цS |
40V / цS |
40V / цS |
|
S/N ratio |
103 dB |
103 dB |
103 dB |
|
Damp Modulus (8
Ω) |
> 400 |
> 400 |
> 400 |
|
Radiator
|
High/Low (auto) |
High/Low (auto) |
High/Low (auto) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
