 Professional
Power Mixer |
|
|

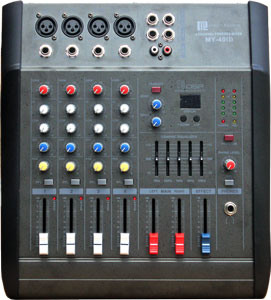

Picture is MY40 I |
| |
|
FEATURE:
|
| |
|
Model |
MY 40P
(I) |
|
SPECIFICATIONS
|
|
Line Channel |
4 Channel |
|
Channel EQ |
2 Band |
|
Main Buses |
1 Stereo |
|
Group Buses |
1 Stereo |
|
Frequency Response |
18 Hz ~ 18 KHz |
|
Output Power |
8 Ω 150 W x 2
4 Ω 250 W x 2 |
|
|
|
|
Advance
|
|
Mic Input B |
Electronically balanced,
discrete input configuration |
|
Bandwidth |
10 Hz ~ 60 KHz ± 3dB |
|
Distortion (THD & N) |
0.01% at + 4 dBu,
1KHz
Bandwidth 80 KHz |
|
Mic E.I.N(22 Hz ~ 22 KHz) |
-129.5 dBu, 150 Ω source |
| |
-117.3 dBqp, 150 Ω source |
| |
-132.0 dBu, input shorted |
| |
-122.0 dBqp, input shorted |
|
TRIMrange |
+10 dB ~ 60 dB |
|
Line input |
electronically balanced |
|
Bandwidth |
10 Hz ~ 60 KHz ± 3dB |
|
Distortion (THD & N) |
0.01% at +4 dBu, 1 Khz,
Bandwidth 80 KHz |
|
Line level range |
+10 dBu ~ 4 dBu |
| |
|
|
Equalization |
|
Hi-Shelving |
12 KHz ± 15 dB |
|
Mid Range |
2.5 KHz ± 15 dB |
Lo Shelving
|
80 Hz ± 15 dB
|
|
Master Mix Section |
|
Max output |
+22 dBu balanced |
|
Aux Send Max Out |
+22 dBu unbalanced |
|
Control Room Out |
+22 dBu unbalanced |
|
Signal To Noise Ratio |
+112 dB, all channels at
Unity Gain |
|
|
|
|
Power Supply |
|
Main Voltages |
~ 120V AC, 60 Hz |
| |
~ 240V Ac, 50 Hz |
| |
~220 V AC, 50 Hz |
|
| |
|
| |
|
|
