 Professional
Power Mixer |
|
|
|
| |
|
FEATURE:
- 6 Mono Input
Channels with gold plated XLRs and balanced Line
inputs
- Extremely high
headroom - offering more dynamic range
- Balanced inputs
for highest signal integrity
- Ultra - musical
2 - band EQ on all mono channels
- Peak LEDs all
Mono Channels
- 2 AUX Send
per channel for external effects and monitoring
- Digital of
the effect system inside
- Separate Master
Mix, Control Room and Headphone Outputs
- 2 - Track Inputs
assignable to Master Mix Output
- Highly accurate
10 segments Bargraph Meters
|
| |
|

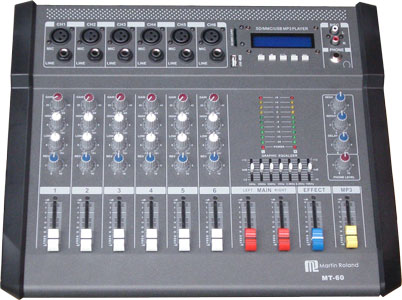

Model |
MT 60
|
|
SPECIFICATIONS
|
|
Mic Input B |
electronically
balanced, discrete input configuration
|
|
Bandwidth |
10 Hz ~ 60 KHz
± 3dB |
|
Distortion
|
0.01 % at +4 dBu,
1 KHz |
|
Mic E.I.N (22
Hz ~ 22 KHz) |
-129.5 dBu, 150
Ω |
| |
-117.3 dBqp, 150
Ω |
| |
-132.0 dBu, input
shorted |
| |
-122.0 dBqp, input
shorted |
|
TRIMrange |
+10 dB ~ 60 dB |
|
Line Input |
electronically
balanced |
|
Line Level Range |
10 dBu ~ 4 dBu |
|
|
|
|
Equalization |
|
Hi Shelving |
12 KHz ± 15dB |
|
Mid Range |
2.5 KHz ± 15dB |
|
Lo Shelving |
80 Hz ± 15dB |
|
Max Output |
+ 22 dBu balanced |
|
Aux Send Max out |
+ 22 dBu unbalanced |
|
Control Room out |
+ 22 dBu unbalanced |
|
Signal To Noise
Ratio |
+ 112 dB all channels
at Unity Gain |
|
Line Channel |
6 CH |
|
Main Buses |
1 Stereo |
|
Group Buses |
1 Stereo |
|
Effector |
18 Hz ~ 18 KHz |
|
Power Output |
4 Ω 300 W *2
|
|
| |
|
| |
|
|
