 Professional
Power Mixer |
|
|
|
| |
|
FEATURE:
- 4, 6 Mono Input
Channels with gold plated XLRs and balanced Line inputs
- Ultra-low noise
discrete Mic Preamps with +48V Phantom Power
- Extremely high
headroom -offering more dynamic range
- Balanced Inputs
for highest signal integrity
- Ultra-musical 2-band
EQ on all channels
- Peak LEDs all Mono
Channels
- 1 Aux Send per
channel for external effects and monitoring
- Build in digital
multi (16 DSP)
- Master Mix Output
and rec output
- Highly accurate
10 segment Bargraph Meters
- Separate Master
Mix Outputs
- CD inputs
- Earphone monitor
output
- 2 x 7 Band master
EQ
|
| |
|

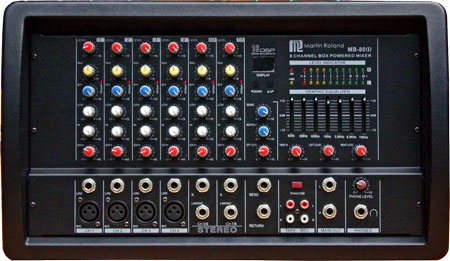

Model |
MB 80 PI
|
|
SPECIFICATIONS
|
|
Channel Mic/Line |
8 Channel |
|
Total Harmonic Distortion |
≤ 0.05% |
|
Frequency Response |
5 Hz ~ 50 KHz
± 3dB |
|
S/N Ratio |
≥ - 103 dB |
|
Effector |
16 DSP effector
digital display |
|
Power Output |
2 x 200 W (4Ω) |
|
|
|
Advance
|
|
Input Channel Sensitivity |
|
| |
MIC |
-60 dB |
|
|
STEREO CH. INPUT |
-40 dB |
| |
EFX
SEND |
-20 dB |
|
|
EFF, RETURN |
-20 dB |
|
OUTPUTS |
4 V MAX |
|
OUTPUTS |
-80 dB |
|
PARMETRIC EQ |
|
|
|
HI |
+15 dB / 10 KHz |
| |
MID |
± 15 dB / 250
Hz ~ 6 KHz |
|
|
LOW |
± 15 dB / 60 Hz |
|
T.H.D |
0.1 % below (1
KHz Full Power) |
|
Power Requirement |
AC 220 V / 50 Hz
or 120 V / 60 Hz |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
