 Professional
Power Mixer |
|
|
|
| |
|
FEATURE:
- Ultra-low noise
4/6 Channel
- Built in digital
effector and with power amplifier
- Ultra-musical 3
Band EQ on all channels and
- 7 Band EQ on all
master output, mono powered output
|
| |
|

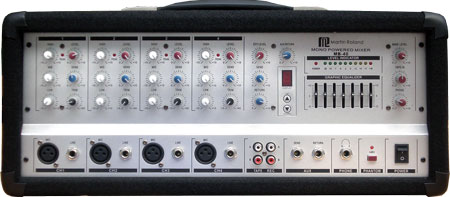

Model |
MB 40
|
|
SPECIFICATIONS
|
|
Input Channel Sensitivity |
|
| |
Mic |
-60 dB |
| |
Stereo
Channel Input |
-40 dB |
| |
EFX Send |
-20 dB |
| |
EFF
Return |
-20 dB |
|
Outputs |
4 V Max |
| Outputs |
-80 dB |
|
Parametric EQ |
|
| |
HI |
+15 dB / 10 KHz |
| |
MID |
+15 dB / 250 Hz ~
6 KHz |
| |
LOW |
+15 dB / 60 Hz |
|
Power Outputs |
200 W (4Ω) |
| |
125 W x 2 (8Ω) |
|
T.H.D |
< 0.1 % (1 KHz) |
|
Power Requirements |
AC 220 V |
|
Power Consumption |
300 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
