 Professional
Mixer |
|
|
| |
|
FEATURE:
- Dual 7 Band EQ
- Build in Echo effector
- 2 Channel level
display output
- Record earphone
monitor output
- ±20 dB signal fluctuation
switch
- 3 Band EQ each
channel
- Earphone monitor
each channel
|
| |
|

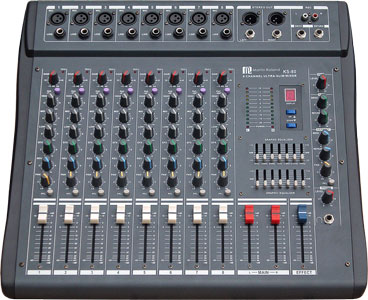

Model |
KS 80
|
|
SPECIFICATIONS
|
|
Channel Mic/Line |
8
Channel |
|
Channel EQ |
3 Band |
|
Main Buses |
1
Stereo |
|
Group Buses
|
1 Stereo |
|
Frequency Response |
18
Hz ~ 18 KHz |
|
Power Consumption |
30 W |
|
|
|
MIXER SECTION |
|
Mic |
-60 dB |
|
Stereo Channel Input |
-40
dB |
|
EFX send |
-20 dB |
|
EFX return |
-20
dB |
|
OUTPUTS |
4 V max |
|
Signal To Noise Ratio |
-80
dB |
|
Parametric EQ. |
HI |
± 15dB / 10 KHz |
| |
MID |
±
15 dB / 250 Hz ~ 6 KHz |
| |
LOW
|
± 15dB / 60 Hz
|
POWER SECTION |
|
Mains Voltages |
China |
~ 220 V AC, 50 Hz |
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
| |
|
|
