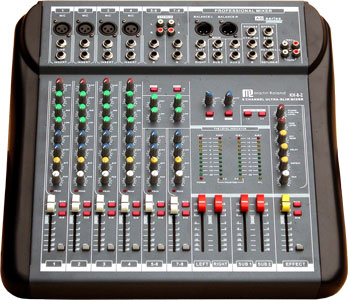

Professional Mixer |
|
|
| |
|
FEATURE:
- +48 V Phantom Power
- ECHO effector
- Dual Group
- 4 Channel level
display output
- Record earphone
monitor output
- 3 Band EQ each
channel
|
| |
|
Model |
KH 8 -2
|
|
SPECIFICATIONS
|
| Channel
Mic/Line |
8
CH |
|
Channel EQ |
3 Band |
| Main
Buses |
1
Stereo |
|
Group Buses |
1 Stereo |
| Frequency
Response |
18
Hz ~ 18 KHz |
|
Power consumption |
30 W |
|
|
|
ADVANCE SPECS |
|
Noise |
20Hz to 20 KHz band
width,
line inputs main |
| L/R
outputs, all channels assigned, panned L/R) |
Master fader down,
Ch gains down
|
< - 82 Bu
|
Total Harmonic Distortion |
|
Mic input to main
output |
< 0.01% |
| Other
outputs |
<
0.05% |
| |
|
|
Crosstalk |
Channel
fader down,
channels at Unity |
<
-80 dBu |
Frequency Response
(any input to any output) |
20 Hz ~ 20 KHz |
|
|
|
|
Impedances
|
|
Mic preamp input |
1.6 KΩ |
| All
other inputs |
>
10 KΩ |
|
RCA output |
1.1 KΩ |
| All
other outputs |
120Ω |
| |
|
|
Equalization |
| High
EQ shelving 12 KHz |
±
15dB |
|
Mid EQ shelving 12
KHz |
± 15dB |
Low
EQ shelving 80 Hz
|
±
15 dB
|
|
Microphone Preamp |
150
Ω terminated max gain
|
-115
dBm
|
|
Input sensitivity |
| Mic |
-60
dB |
|
Stereo input |
140 dB |
| Aux
input |
-20
dB |
|
Effect return |
-20 dB |
|
|
|
Outputs level |
|
Main output |
+4 V max |
| Power
Requirements |
30
Watts |
|
| |
|
| |
|
|
