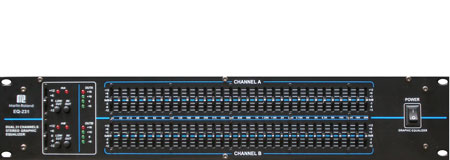

 Professional
Equalizer
|
|
|
| |
|
FEATURE:
- 2—Channel 31—Band design with
1/3 octave constant Q±12dB Range. Adjustable ±12dB range for
input gain
- Equip with —18 dB low-cut
switch (75 Hz) can effectively remove low-band noises
- By-pass switch, convenient for
machines test work
- Standard 2 U configuration,
better for engineer installation
- 5—Band dual-color signal level
indication, XLR balance and
1/4 TRS unbalanced input and output easier for your use
12—series appealing design make it easier for you to operate
|
| |
|
Model |
EQ 231 |
|
SPECIFICATIONS
|
|
Frequency Each Channel |
20 Hz |
|
25 Hz |
|
31.5 Hz |
|
40 Hz |
|
50 Hz |
|
63 Hz |
|
80 Hz |
|
100 Hz |
|
125 Hz |
|
160 Hz |
|
200 Hz |
|
250 Hz |
|
315 Hz |
|
400 Hz |
|
500 Hz |
|
630 Hz |
|
800 Hz |
|
1 KHz |
|
1.25 KHz |
|
1.6 KHz |
|
2 KHz |
|
2.5 KHz |
|
3.15 KHz |
|
4 KHz |
|
5 KHz |
|
6.3 KHz |
|
8 KHz |
|
10 KHz |
|
12.5 KHz |
|
16 KHz |
|
20 KHz |
|
Frequency Band |
2 x 31 1/3 Octave, ISO spacing |
|
Filter Type |
Constant Q |
|
Slider Travel |
20 mm (Center Detent) |
|
Level Control Range |
± 12 dB |
|
Inputs Type |
Active Balanced / Unbalanced |
|
Connectors |
3-Pin XLR, 1/4" TS
(Balanced) |
|
Impedance |
40 K Ωs Balanced;
20 K Ωs Unbalanced; |
|
Maximum Level |
28 dBV |
|
Outputs Type |
Unbalanced |
|
Connectors |
3 Pin XLR, 1/4" TRS |
|
Impedance |
Typically < 400 Ωs |
|
Maximum Level |
± 20 dBV |
|
Clip LED Threshold |
3 dB (Below Clipping) |
|
Low Cut Filter |
40 Hz , 12 dB / octave |
|
Frequency Response |
20 Hz ~ 20 KHz ± 1dB |
|
THD + Noise |
< 0.008% (@1 KHz , all
faders at mid position) |
|
Signal to Noise Ratio |
95 dB (@ 1KHz) |
|
Channel Separation |
60 dB (1 KHz) |
|
Line Voltage |
115 ~ 230 VAC, 50 / 60 Hz |
|
Power Consumption |
Maximum 15 watts |
|
| |
|
