 Professional
Equalizer |
|
|
| |
|
FEATURE:
- Constant—Q graphic
Equalizer
- Dual 15 — Band
2/3 Octave equalizer
- Input , RF Filtered
Servo Balance Input
- Low Frequency function
removes noises completely, protecting bass speaker
|
| |
|

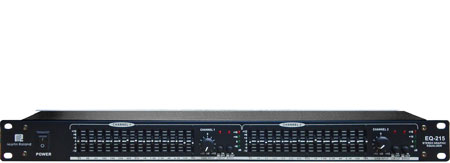

Model |
EQ 215
|
|
SPECIFICATIONS
|
|
Frequency Each Channel |
25 Hz |
| 40
Hz |
|
63 Hz |
| 100
Hz |
|
160 Hz |
| 250
Hz |
|
400 Hz |
| 630
Hz |
|
1 KHz |
| 1.6
KHz |
|
2.5 KHz |
| 4
KHz |
|
6.3 KHz |
| 10
KHz |
|
16 KHz |
| Frequency Band |
2
x 15 2/3 Octave, ISO spacing |
|
Filter Type |
Constant Q |
| Slider Travel |
20
mm (Center Detent) |
|
Level Control Range |
± 12 dB |
| Inputs Type |
Active
Balanced / Unbalanced |
|
Connectors |
3-Pin XLR, 1/4" TS
(Balanced) |
| Impedance |
40
K Ωs Balanced;
20 K Ωs Unbalanced; |
|
Maximum Level |
28 dBV |
| Outputs Type |
Unbalanced |
|
Connectors |
3 Pin XLR, 1/4" TRS |
| Impedance |
Typically
< 400 Ωs |
|
Maximum Level |
± 20 dBV |
| Clip LED Threshold |
3
dB (Below Clipping) |
|
Low Cut Filter |
40 Hz , 12 dB / octave |
| Frequency Response |
20
Hz ~ 20 KHz ± 1dB |
|
THD + Noise |
< 0.008% (@1 KHz ,
all faders at mid position) |
| Signal to Noise
Ratio |
95
dB (@ 1KHz) |
|
Channel Separation |
60 dB (1 KHz) |
| Line Voltage |
115
~ 230 VAC, 50 / 60 Hz |
|
Power Consumption |
Maximum 15 watts |
|
| |
|
| |
|
|
