 Professional
Mixer |
|
|
| |
|
FEATURE:
- Mono Input Channels
with gold plated XLRs and balanced Line Inputs
- Ultra-low noise
discrete Mic Preamps with +48V Phantom Power
- Extremely high
headroom offering more dynamic range
- Balanced Inputs
for highest signal integrity
- Ultra-musical 3-band
EQ on all channels
- Peak LEDs all Mono
Channels
- 1 Aux Send per
channel for external effects and monitoring
- Build in digital
multi (16 DSP)
- Master Mix Output
and rec output
- Highly accurate
10 segment Bargraph Meters
- Separate Master
Mix outputs
|
| |
|

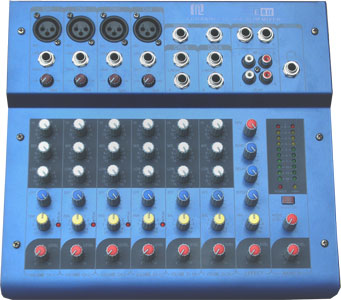

Model |
E 8 II
|
|
SPECIFICATIONS
|
| Channel
Line |
8
CH |
|
Channel EQ |
3 Band |
| Main
Buses |
1
Stereo |
|
Frequency Response |
18 Hz ~ 18 KHz |
Power
consumption
|
30
W
|
|
Advance
|
| Mic
input B |
Electronically
balanced,
discrete input configuration |
|
Bandwidth |
10 Hz to 60 KHz ±
3 dB |
| Distortion
(THD & N) |
0.01
% at +4 dBu, 1 KHz,
Bandwidth 80 KHz |
|
Mic E.I.N (22 Hz ~
22 KHz ) |
-129.5 dBu, 150 Ohm
source |
| |
-117.3
dBqp, 150 Ohm source |
|
|
-132.0 dBu, input
shorted |
| |
-122.0
dBqp, input shorted |
|
TRIMrange |
+10 dB ~ 60 dB |
| Line
input |
Electronically
balanced |
|
Bandwidth |
10 Hz ~ 60 KHz ± 3dB |
| Distortion
(THD&N) |
0.01%
at +4 dBu, 1 KHz,
Bandwidth 80 KHz |
|
Line level range |
+10 dBu to 4 dBu |
|
|
|
|
Equalization |
|
Hi-Shelving |
12 KHz ± 15 dB |
| Mid
Range |
2.5
KHz ± 15 dB |
Lo Shelving
|
80 Hz ± 15 dB
|
|
Master Mix section |
|
Max output |
+22 dBu balanced |
| Aux
Send Max Out |
+22
dBu unbalanced |
|
Control Room Out |
+22 dBu unbalanced |
| Signal
To Noise Ratio |
+112
dB, all channels at Unity Gain |
| |
|
|

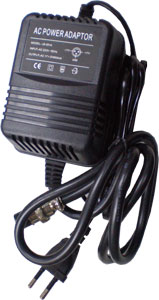

Power Supply |
| Mains
Voltages |
USA/
Canada ~ 120 V AC, 60 Hz |
|
|
U.K / Australia ~
240 V AC, 50 Hz |
|
|
China
~ 220 V AC, 50 Hz |
|
| |
|
| |
|
|
