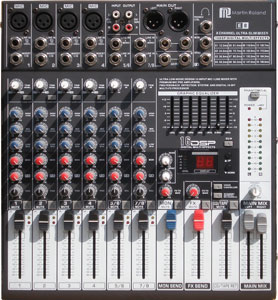

Professional Mixer |
|
|
| |
|
FEATURE:
- 4 Mono Input Channels with
gold plated XLRs and balanced Line Inputs
- Ultra-low noise discrete
Mic Preamps with +48 V Phantom Power
- Extremely high headroom
offering more dynamic range
- Balanced Inputs for highest
signal integrity
- Ultra-musical 2-band EQ on
all channels
- Peak LEDs all Mono Channels
- 1 Aux Send per channel for
external effects and monitoring
- Build in digital Multi (16
DSP)
- Master Mix Output and rec
output
- Highly accurate 10 segment
Bargraph Meters
- Separate Master Mix Outputs
|
| |
|
Model |
E 8 |
|
SPECIFICATIONS
|
|
Channel Mic/Line |
8 CH |
|
Total Harmonic Distortion |
≤ 0.05% |
|
Frequency Response |
5 Hz ~ 50 KHz ± 3dB |
|
S/N Ratio |
≥ - 103 dB |
|
Max Outputs |
4 V Max |
|
Input Sensitivity |
Mic - 60dB
Line - 40 dB
Aux - 40 dB
Efret - 40 dB
Tape - 40 dB |
|
Input EQ |
Hi ±15 dB 12 KHz
Mid ± 15 dB 250 Hz ~ 6 KHz
Low ± 15dB 60 Hz |
|
Power Consumption |
30 W |
|
|
|
|
Advance
|
|
Mic Input B |
Electronically balanced,
discrete input configuration |
|
Bandwidth |
10 Hz to 60 KHz ± 3 dB |
|
Distortion (THD & N) |
0.01% at +4 dBu, 1 KHz,
Bandwidth 80 KHz |
|
Mic E.I.N (22 Hz ~ 22 KHz) |
-129.5 dBu, 150 Ω source |
|
|
-117.3 dBqp, 150 Ω source |
|
|
-132.0 dBu, input shorted |
|
|
-122.0 dBqp, input shorted |
|
TRIMrange |
+10 dB ~ 60 dB |
|
Line Input |
electronically balanced |
|
Bandwidth |
10 Hz ~ 60 KHz ± 3dB |
|
Distortion (THD&N) |
0.01% at +4dBu, 1KHz,
Bandwidth 80 KHz |
Line Level Range
|
+10 dBu ~ 4 dBu
|
|
Equalization |
|
Hi Shelving |
12 KHz ± 15 dB |
|
Mid Range |
2.5 KHz ± 15 dB |
Lo Shelving
|
80 Hz ± 15 dB
|
|
Master Mix Section |
|
Max Output |
+22 dBu Balanced |
|
Aux Send Max Out |
+22 dBu unbalanced |
|
Control Room Out |
+22 dBu unbalanced |
|
Signal To Noise Ratio |
+112 dB, all channels at
Unity Gain |
|
|
|
|
Power Supply |
|
Main Voltages |
~ 120 V AC, 60 Hz |
|
|
~240 V AC, 50 Hz |
|
|
~ 220 V AC, 50 Hz |
|
| |
|
| |
|
|
