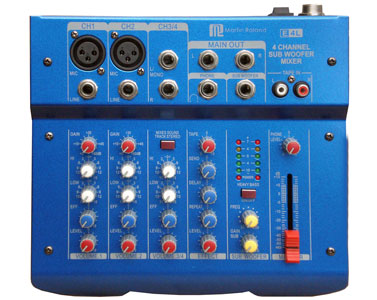

Professional Mixer |
|
|
| |
|
FEATURE:
- +48 V Phantom Power
- Subwoofer
- Build in echo effector
- 2 Channel level
display output
- Record earphone
monitor output
- 2 Band EQ each
channel
- Channel Mic/Line
|
| |
|
Model |
E 4 L
|
|
SPECIFICATIONS
|
| Channel
Line |
4
CH |
|
Channel EQ |
2 Band |
| Main
Buses |
1
Stereo |
|
Frequency Response |
18 Hz ~ 18 KHz |
Power
consumption
|
30
W
|
|
Advanced |
| Mic
Input B |
electronically
balanced, discrete input configuration |
|
Bandwidth |
10 Hz ~ 60 KHz ± 3dB |
| Distortion
(THD & N) |
0.01%
at + 4 dBu,
1KHz Bandwidth 80 KHz |
|
Mic E.I.N (22 Hz ~
22 KHz ) |
-129.5 dBu, 150 Ω
source |
| |
-117.3
dBqp, 150 Ω source |
|
|
-132.0 dBqp, input
shorted |
| |
-122.0
dBqp, input shorted |
|
TRIMrange |
+10 dB ~ 60 dB |
| Line
input |
electronically
balanced |
|
Distortion (THD &
N) |
0.01% at +4 dBu, 1
KHz , Bandwidth 80 KHz |
Line
level range
|
+
10 dBu to 4 dBu
|
|
Equalization |
| Hi
Shelving |
12
KHz ± 15 dB |
|
Mid Range |
2.5 KHz ± 15 dB |
Lo
Shelving
|
80
Hz ± 15 dB
|
|
Master Mix Section |
| Max
Output |
+22
dBu balanced |
|
Aux Send Max Out |
+22 dBu unbalanced |
| Control
Room Out |
+22
dBu unbalanced |
|
Signal To Noise Ratio |
+112 dB, all channels
at Unity Gain |
|
|
|
|

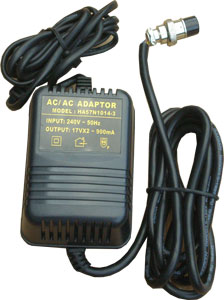

Power Supply |
|
Mains Voltage |
China 220 V AC, 50
Hz |
|
| |
|
| |
|
|
