 Professional
Mixer |
|
|
| |
|
FEATURE:
- 130 dB dynamic
Range for an incredible amount of headroom
- A bandwidth ranging
from below 10 Hz ~ 200 KHz for crystal-clear reproduction
of even the finest nuances
- The extremely low-noise
and distortion-fee circuitry guarantees absolutely natural
and transparent signal reproduction
- They are perfectly
matched to every conceivable microphone with up to 60
dB gain and +48V phantom power supply
- They are enable
to use the greatly extended dynamic range of your 24
bit/192KHz HD recorder to the full, thereby maintain
optimal audio quality
|
| |
|

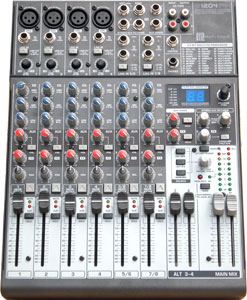

Model |
E 1204 FX
|
|
SPECIFICATIONS
|
|
Type |
XLR,
Electronically balanced |
|
Mic E.I.N(20 Hz~20KHz) |
|
| Resistance |
@
0 Ω |
-134
dB/ 135.7 dB A-weighted |
| |
@ 50 Ω |
-131 dB/ 133.3 dB
A-weighted |
| |
@
150 Ω |
-129
dB / 130.5 dB A-weighted |
|
Frequency Response |
< 10 Hz ~ 150
KHz (-1 dB) |
| |
<10
Hz ~ 200 KHz (-3 dB) |
|
Gain range |
+10 ~ + 60 dB |
|
Max. input level |
+12
dBu @ + 10 dB gain |
|
Impedance |
approx. 2.6 KΩ balanced |
|
Signal to noise ratio |
110
dB/ 112 dB A-weighted (0 dBu In @ +22 dB gain) |
|
Distortion (THD+N) |
0.005% / 0.004% A-weighted |
|
|
|
|
Line Input |
|
Type |
1/4" TRS connector
electronically balanced |
|
Impedance |
approx.
20 KΩ balanced
10 KΩ unbalanced
-10 ~ + 40 dB |
|
Gain range |
-10 ~ + 40 dB |
|
Max input level |
30
dBu |
|
|
|
|
Fade-out attenuation
( CrossTalk ) |
|
Main
fader closed
|
90
dB
|
|
Channel muted |
89.5 dB |
Channel fader closed
|
89
dB
|
|
Frequency response |
|
Microphone
input to main out
|
|
|
<10 Hz ~ 90 KHz
|
+0 dB / - 1 dB |
<10 Hz ~ 160 KHz
|
+0
dB / - 3 dB
|
|
Stereo inputs |
|
Type |
1/4"
TRS connector,
electronically balanced |
|
Impedance
|
approx.
20 KΩ
|
Max. input level
|
+22
dBu
|
|
EQ mono channels |
|
Low |
80
Hz / ± 15 dB |
|
Mid |
2.5 KHz / ± 15 dB |
High
|
12
KHz / ± 15 dB
|
|
EQ stereo channels |
|
Low |
80
Hz / ± 15 dB |
|
Mid |
2.5 KHz / ±15 dB |
High
|
12 KHz / ± 15 dB
|
|
Aux sends |
|
Type |
1/4"
TS connector , unbalanced |
|
Impedance |
approx 120 Ω |
Max. output level
|
+22
dBu
|
|
Stereo aux returns |
|
Type |
1/4"
TRS connector, electronically balanced |
|
Impedance |
approx. 20 KΩ bal,
/ 10 KΩ unbal. |
Max input level
|
+22
dBu
|
|

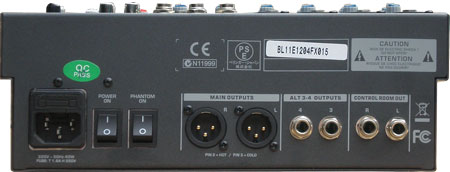

Main outputs |
|
Type |
XLR,
electronically balanced |
|
Impedance |
approx. 240 Ω bal.
/ 120 Ω unbal. |
Max output level
|
+28
dBu
|
|
Control room outputs |
|
Type |
1/4"
TS connector, unbal. |
|
Impedance |
approx. 120 Ω |
Max. output level
|
+22
dBµ
|
|
Headphones output |
|
Type |
1/4"
TRS connector, unbalanced |
|
Max. output level |
+19 dBu / 150 Ω (+25
dBm) |
|
|
|
DSP 24 bit Texas Instruments
™ |
|
Converter |
24 bit sigma Delta,
64/128-times oversampling |
|
Sampling Rate |
40
KHz |
|
|
|
|
Main mix system
data |
Noise
Main mix @ -∞
Channel fader -∞
|
-105
dB/ -108 dB A-weighted |
Main mix @ 0 dB
Channel fader -∞ |
-95 dB/ -97 dB A-weighted |
Main Mix @ 0 dB
Channel fader @ 0 dB
|
-82.5
dB / -85 dB A-weighted
|
|
Power Supply |
|
Main voltage |
100
~ 240 V , 50/60 Hz |
|
Power Consumption |
40 W |
|
Fuse |
100
~ 240 V T 1.6A H250 V |
|
Main connection |
Standard IEC receptacle |
|
| |
|
| |
|
|
