Professional Mixer |
|
|
| |
|
FEATURE:
- 4 Mono Input Channels
with gold plated XLRs and balanced Line Inputs
- Ultra-low noise
discrete Mic Preamps with +48 V Phantom Power
- Extremely high
headroom offering more dynamic range
- Balanced Inputs
for highest signal integrity
- Ultra-musical 2-band
EQ on all channels
- Peak LEDs all Mono
Channels
- 1 Aux Send per
channel for external effects and monitoring
- Build in digital
Multi (16 DSP)
- Master Mix Output
and rec output
- Highly accurate
10 segment Bargraph Meters
- Separate Master
Mix Outputs
|
| |
|

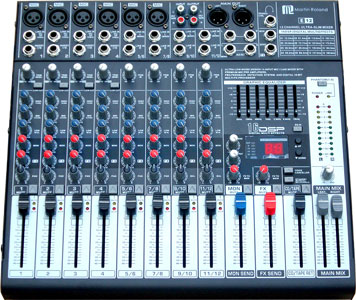

Model |
E 12
|
|
SPECIFICATIONS
|
| Channel
Mic/Line |
12
CH |
|
Total Harmonic Distortion |
≤ 0.05% |
| Frequency
Response |
5
Hz ~ 50 KHz ± 3dB |
|
S/N Ratio |
≥ - 103 dB |
| Max
Outputs |
4
V Max |
|
Input Sensitivity
|
Mic - 60dB
Line - 40 dB
Aux - 40 dB
Efret - 40 dB
Tape - 40 dB |
| Input
EQ |
Hi
±15 dB 12 KHz
Mid ± 15 dB 250 Hz ~ 6 KHz
Low ± 15dB 60 Hz |
|
Power Consumption |
30 W |
|
|
|
|
Advance Specification |
|
Mic Input B |
Electronically balanced,
discrete input configuration |
| Bandwidth |
10
Hz to 60 KHz ± 3 dB |
|
Distortion (THD &
N) |
0.01% at +4 dBu, 1
KHz, Bandwidth 80 KHz |
| Mic
E.I.N (22 Hz ~ 22 KHz) |
-129.5
dBu, 150 Ω source |
| |
-117.3 dBqp, 150 Ω
source |
| |
-132.0
dBu, input shorted |
| |
-122.0 dBqp, input
shorted |
| TRIMrange |
+10
dB ~ 60 dB |
|
Line Input |
electronically balanced |
| Bandwidth |
10
Hz ~ 60 KHz ± 3dB |
|
Distortion (THD&N) |
0.01% at +4dBu, 1KHz,
Bandwidth 80 KHz |
| Line
Level Range |
+10
dBu ~ 4 dBu |
| |
|
|
Equalization |
| Hi
Shelving |
12
KHz ± 15 dB |
|
Mid Range |
2.5 KHz ± 15 dB |
Lo
Shelving
|
80
Hz ± 15 dB
|
|
Master Mix Section |
| Max
Output |
+22
dBu Balanced |
|
Aux Send Max Out |
+22 dBu unbalanced |
| Control
Room Out |
+22
dBu unbalanced |
|
Signal To Noise Ratio |
+112 dB, all channels
at Unity Gain |
|
|
|

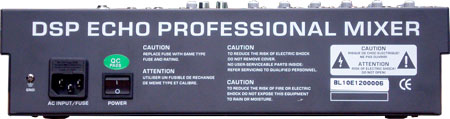

Power Supply |
|
Main Voltages |
~ 120 V AC, 60 Hz |
| |
~240
V AC, 50 Hz |
| |
~ 220 V AC, 50 Hz |
|
| |
|
| |
|
|
