Structural
Design Series
|
| |
|
FEATURE:
- Versatile Mounting
brackets for a variety of placement options
- Small, high-impact,
polyresin cabinets with sleek contours and durable metal
grilles
- Push Terminal Connections
- Video Shielding
- Weather-resistant
cabinets
- Master cartons
containing three pairs of speakers
|
| |
|
Model |

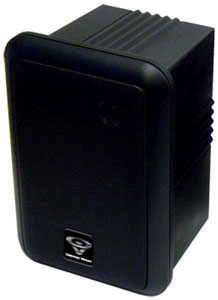

SDS 525 B
|
|
SPECIFICATIONS
|
|
Frequency
Response |
68 Hz ~
20 KHz (-10 dB) |
| Design |
2 Way,
Bass Reflex |
|
Crossover
Frequency |
3.5 KHz |
| Power
Handling |
150
Watts, IEC -286 -5 |
|
Impedance |
4 Ω nominal
|
| Sensitivity |
88 dB
@ 1Watt/meter |
|
Video Shielded |
Yes |
| Driver
|
1" mylar-dome
tweeter
5.25" co-polymer woofer with
butyl-rubber surround |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
