FEATURE:-
-
IC Version
-
FM TV / MW/SW1-8
Receiver
-
DX/Local Switch
-
Earphone jack
-
DC jack
-
Telescopic antenna
-
DC 3 V , "AA' Size
(UM-3) x 2 (Not inclucded)
|
| |
|

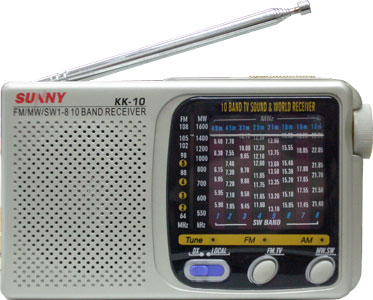

Model |
KK -10 |
|
SPECIFICATIONS
|
|
Power Source |
Two AA size / UM-3 batteries
(3 V) |
|
Frequency Range |
|
|
|
FM |
88 ~ 108 MHz (CH2~5) |
|
|
MW |
530 ~ 1600 KHz |
|
|
SW1 |
5.90 ~ 6.40 MHz |
|
|
SW2 |
7.05 ~ 7.70 MHz |
|
|
SW3 |
9.45 ~ 10.10 MHz |
|
|
SW4 |
11.60 ~ 12.30 MHz |
|
|
SW5 |
13.10 ~ 13.90 MHz |
|
|
SW6 |
15.05 ~ 15.65 MHz |
|
|
SW7 |
17.45 ~ 18.20 MHz |
|
|
SW8 |
21.40 ~ 22.20 MHz |
|
Speaker |
8 Ω 0.5 W |
|
Power Output |
200 mW (RMS. Max) |
|
Output jack |
Earphone 32Ω |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
