 Mobile
Hand-free
|
|
|
|
| |
|
FEATURE:
-
Uses Cigarette Lighter Head
-
RF Indicator
-
RF On/Off Switch
-
Volume Tuner
-
Frequency Selector with 7 Frequencies
-
Microphone
-
Mobile Signal Input Jack
-
MP3/Mobile Switch
-
MP3 Signal Input Jack
-
12V DC Output Jack
-
Power Indicator
-
Compatible with All Mobile Phones
|
| |
|

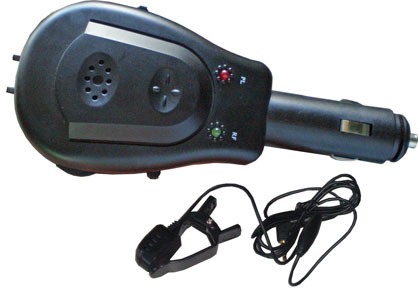

Model
|
MP 1688
|
|
SPECIFICATIONS
|
|
Audio input level |
-10 dBv |
| Limiter input
level |
-16 ~ -10 dB gain |
|
Audio input frequency
band |
20 Hz ~ 15 KHz |
| Pre-emphasis time
constant |
40 ~ 60 µs |
|
Channel Separation |
25 ~ 40 dB
|
| Channel balance |
± 2 |
|
T.H.D |
0.3 % |
| Transmission Output
level |
88~ 89.2 MHz +
3dB |
|
Deviation |
-40 |
| Spurious Level |
75 KHz
|
|
Power dissipation |
700 mW |
| Operating Temperature
|
-20 ~65°C |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
