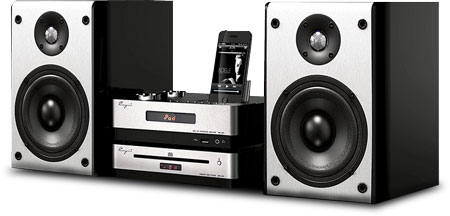

MINI HIFI COMBO |
|
|
|
| |
|
FEATURE:
- Full function remote control
- 2 set of external audio input interface, AUX and
AUX1
- Flash/SD disk playback
- Card reader function can be managed through the
PC
- USB Sound Card Functionality (PC-DAC)
- FM radio function
- iPod/iPhone Universal Dock, playback control and
charging
- Using Tube line amplifier circuit and Class D
power amplifiers, beautiful sound, strong power.
- Stereo headphone jack
- LED digital screen display system
- Using advanced control chip , support for
playback APE, FLAC, WAV and lossless music format
MP3, WMA format music and other format
- Custom extruded aluminum enclosure, the matt
sandblasted, compact
- CD mechanism with metal suction system, Sanyo
laser pickup and Philips digital servo circuit, with
excellent mechanical seismic performance.
- With roller inhalation structure, deformation,
etc. for non-standard disc also has a strong
compatibility.
- U.S. Cirrus Logic's high-performance (24bit
192kHz) D/A converter chip
|
| |
|
Model |
MM 5 |
|
SPECIFICATIONS
|
|
Power Output |
15W + 15W (RMS 8Ω) |
|
Tube Used |
6N1 x 2 |
|
Frequency Response |
50 Hz ~ 20 KHz (-3 dB) |
|
T.H.D |
1.2 % (1 KHz) |
|
Input Sensitivity |
500 mV |
|
Input Impedance |
100 KΩ |
|
|
|
|
DISC PLAYER |
| Output Level |
2V ± 1dB |
|
Frequency Response |
20 Hz ~ 20 KHz ± 0.5 dB |
| Distortion Plus Noise |
<-60 dB |
|
S/N Ratio |
90 dB |
|
Dynamic Range |
90 dB |
|
Crosstalk (fundamental 1 KHz) |
70 dB |
Supply Voltage
|
DC 8V 0.8 A
|
|
SPEAKER (SP10)
|
|
Rated Power |
40W |
|
Impedance |
6Ω |
|
Sensitivity |
88dB |
|
Frequency Response |
80Hz ~ 24kHz |
|
|
|
|
FM TUNER
|
|
Tuner |
FM stereo |
|
Frequency range |
87.5MHz ~ 108MHz
(in steps of 0.1MHz) |
|
Noise sensitivity |
better than 5uV |
|
| |
|
| |
|
|
