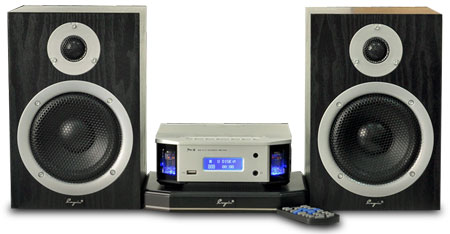

MINI HIFI COMBO |
|
|
|
| |
|
FEATURE:
- Flash disk support MP3/WMA/AAC format music
player
- Support PC-DAC features a computer with a USB
data cable to connect, via the local keypad or
remote control can directly control the computer's
multimedia player, and computer-fidelity music
playback
- Tube hybrid amplifier, beautiful sound
- Built-in FM digital tuner radio module for easy
access to other audio signals
- Full function remote control
- Panel Setup stereo headphone jack, easy to
listen to music with headphones
- LCD full dot matrix display system
- Line input terminal for easy access to other
audio signals
- Preamp tubes: 6N1 × 2
- Power Amplifier IC: TDA7265 × 1
|
| |
|
Model |
MM 2 |
|
SPECIFICATIONS
|
|
Power Output |
6W + 6W (8Ω)
|
|
AC |
AC 100 V ~ 240 V 50/60 Hz |
|
Frequency Response |
20 Hz ~ 22 KHz (± 1dB) |
|
T.H.D |
0.2 %( 1 KHz) |
|
Input Sensitivity |
450mV |
|
AUX IN (RCA) |
500 mV |
|
Input Impedance |
100 KΩ |
|
USB Storage Device |
USB A type
connect,
full speed(12 Mbps) |
|
USB Audio |
USB B-type
connector,
full speed |
|
Sampling Frequency
|
32 KHz, 44.1 KHz,
48 KHz |
|
Headphone Jack |
32 Ω ~ 300 Ω
stereo headphones |
|
Tube Used |
6N1 x 2 |
Power Consumption
|
60 W
|
|
SPEAKER (SP60)
|
|
Rated Power |
50 W |
|
Impedance |
6 Ω |
|
Sensitivity |
88 dB |
|
Frequency Response |
60 Hz ~ 24 KHz |
|
|
|
|
FM TUNER
|
|
Tuner |
FM Stereo |
|
Frequency Response |
87.5 MHz ~ 108 MHz
(in steps of 0.1 MHz) |
|
Noise Sensitivity |
better than 5µV |
|
| |
|
| |
|
|
