High Sensitivity
FM TUNER |
|
|
|
| |
|
FEATURE:
- High Sensitivity Radio Tuner
- USB
- USB Controls
|
| |
|

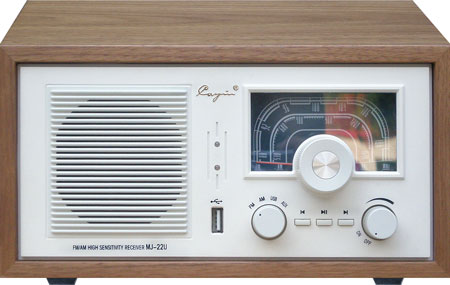

Model |
MJ 22 U
|
|
SPECIFICATIONS
|
|
Frequency Range |
FM 87 MHz ~ 108 MHz |
| |
AM 530 KHz ~ 1610
KHz |
|
Noise Restriction
sensitivity |
FM ~ excelled 5 µV |
| |
AM ~ excelled
2 mV / m |
|
Headphone |
32 Ω ~ 300Ω, stereo |
| Inner amplifier
rated power output |
6.5 W ( 4 Ω, 1
KHz , THD =1%) |
|
Inner Speaker
|
3-inch 4 Ω full range
speaker |

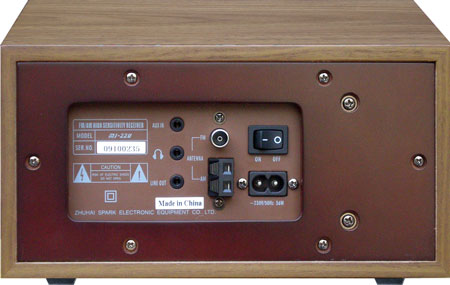

| Outer antenna
resistance |
FM ~ 75
Ω |
| |
AM ~ 300 Ω
|
| Working Condition
|
Operating Temperature
~ -10°C ~ 40°C |
| |
Humidity ~ 20%
~ 80 % |
| Consumed power
|
36 W |
|
Rated Voltage |
230 V / 50 Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
