 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
- Quartz locked fixed
frequency Operates at UHF 780~860 MHz range.
- Non-Diversity twin
channel receiving.
- 19" EIA standard
exquisite casing enables receivers to be mounted
on professional EIA standard rack cabinet.
- Optional fron-antenna-mount
brackets allow easy antenna relocation from rear to
front. It assures best reception when installed into
a rack cabinet.
- Tone-key squelch
circuitry. Compander circuit multi-Squelch system.
- Special circuit
design to delete microphones switch ON/OFF noise.

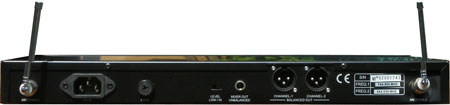

- Audio output
- 1 Independent
Balanced XLR 3P connector for low impedance.
- Mixer Unbalanced
6.3 Ø mm phone jack for high impedance.
|
| |
|

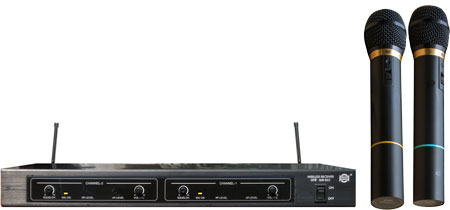

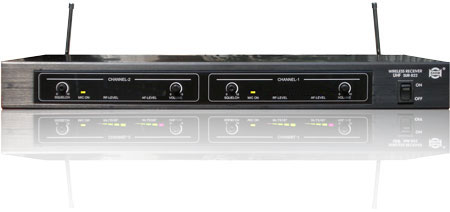

Model |
SUR 822
|
|
SPECIFICATIONS
|
|
Carrier Frequency
Range |
UHF 780~860 MHz |
| Oscillation Mode |
Quartz
controlled fixed frequency |
|
Stability |
± 0.005% / 25°C |
| Max. Deviation |
±
40 / 55 KHz |
|
Dynamic Range |
> 110 dB |
| S/N Ratio |
>
100 dB at ± 15 KHz (Deviation) |
|
T.H.D |
< 0.6% |
| Squelch
Tone Key |
32.768 KHz |
|
Frequency Response |
50 Hz ~ 15 KHz ± 3dB |
| Sensitivity |
3µV
for 20 dB SINAD |
|
Audio Output |
Unbalanced 6.3 mmØ
phone jack output 770mV / 5K Ω
XLR Balanced output 77mV / 600 Ω |
| Power Supply |
DC
12-15V 300mA with
AC/DC Adaptor |
| |
|
|

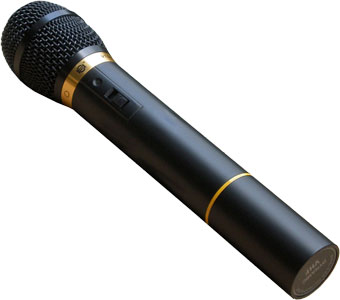

SUT 801(HANDHELD)
|
| Carrier Frequency
Range |
UHF
780 ~ 860 MHz |
|
Microphone Element |
Dynamic Microphone |
| Oscillation Mode |
Quartz
controlled fixed frequency |
|
Modulation Mode |
FM (F3E) |
| Antenna
|
Built-in |
|
RF Carrier Power |
10mW (may be adjusted
based on regulation) |
| Effective Radiated
Power (Spurious) |
Less
than 2 mW |
|
Tone Frequency
|
32.768 KHz |
| Pre-Emphasis |
50µS |
|
Current Drain |
35mA Typical (9.0V) |
| Battery |
8
hours |
|
| |
|
| |
|
|
