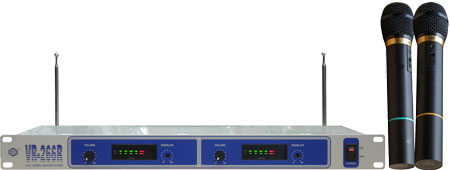

 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
- VHF High Band dual-channel
wireless system
- Standard rack mount
19" type.
- Quartz controlled
fixed frequency
- VHF band, tone
key squelch circuitry.
- Unbalance 6.3mm
phone jack for high impedance

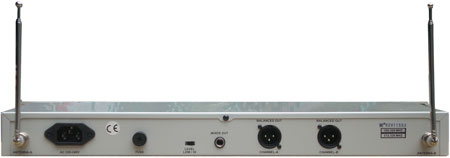

- Balance XLR 3p
connector for low impedance
|
| |
Model |

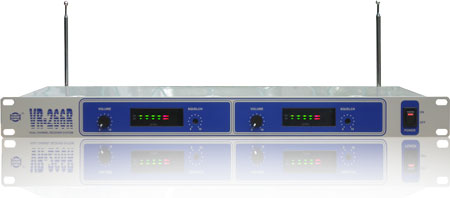

VR 266 R (RECEIVER)
|
|
SPECIFICATIONS
|
|
RF Sensitivity |
VHF Band 170~245 MHz |
| Frequency Response |
-95 dBm/20 dBm
SINAD |
|
Total Harmonic Distortion |
Under <1.0% |
| Audio Output Level |
300mV at ± 40
KHz Deviation |
|
Balance Output Level |
55 mV at ± 40 KHz
Deviation |
| Squelch Adjust |
-70 dBm ~ -95
dBm
Standard =-90 dBm |
|
Power Requirement |
AC 115V/230V 60/50
Hz |
| Operating Temperature |
-10°C ~ 50°C |
|
Specification / Model |

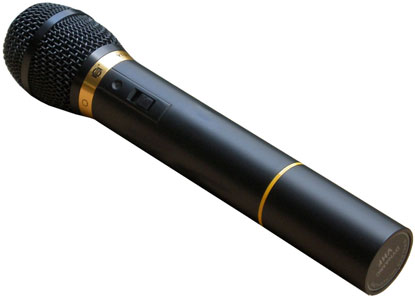

VT-7 (Handheld) |
| Carrier Frequency
Range |
VHF 170~245 MHz |
|
RF Power Output |
10mW |
| Spurious Emission |
>45 dBc |
|
Total Harmonic Distortion |
≤ 1% |
| Power Source |
DC 9V |
|
Current |
35mA |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
