Disc
Player |
|

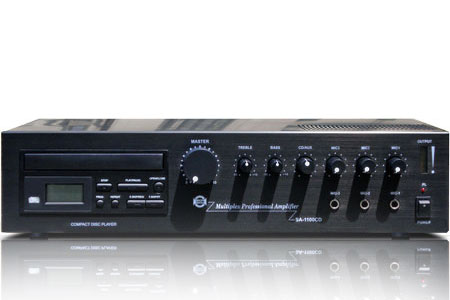

CD Player Professional Amplifier |
| |
|
FEATURE:
- Compact Disc player
- Unbalanced 6.3 ø input
Inputs, jack RCA stereo A for AUX.
- Treble and bass controls.
- LED VU meter Output for
low-impedance and constant
- Voltage speaker
CD/AUX/Tuner
- Volume Controls
- 1-line out jack
|
| |
|
Model |
SA 1100 CD |
|
SPECIFICATIONS
|
|
RMS output |
100 W |
|
Frequency response |
50 Hz ~ 20 KHz (± 3dB)
|
|
Harmonic distortion |
≤ 0.8% |
|
S/N Ratio |
≤ 75 dB |
|
Inputs Sensitivity |
|
| |
MIC |
-1.2.3 (-54dB) |
| |
jack input |
6.3ø, |
| |
AUX (-20 dB) |
RCA jack, |
| |
Line out |
0 dB / 1V, |
| |
MIC input |
unbalanced |
|
Tone control |
|
| |
Bass |
100 Hz ± 10 dB |
| |
Treble |
10 K Hz ± 10 dB |
|
Control |
5 Volume controls
master volume
Treble-bass
1-power switch
over load protection |
|

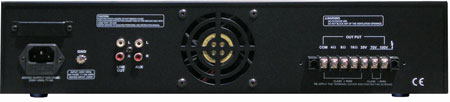

Output |
Com 4, 8 ,16 Ω |
|
Output |
25 , 70, 100V |
|
T.H.D |
< 1% |
|
Output impedance |
Com 4,,8,16 Ω 70.100V |
|
S/N Ratio |
|
| |
Mic |
> 60dB |
| |
AUX |
> 75 dB |
|
CD-Play |
|
| |
Output Level |
1.3V ± 2dB |
| |
Output level difference
between channels |
<2.0 dB |
| |
Frequency Response
(1KHz 0dB as ref.) |
-0.5±1 dB
0± 1dB
0± 2dB
-1 ± 2dB |
| |
Separation |
> 60dB |
| |
T.H.D |
> 0.05% |
| |
S/N Ratio |
> 80dB |
|
| |
|
| |
|
|
