 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|

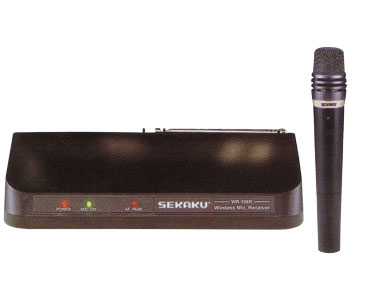

Model |
WR- 106 R / WT 201
|
|
SPECIFICATIONS
|
| S/N
Ratio |
> 90dB
|
|
Frequency Response
|
50 Hz ~ 15 KHz
|
| Receiving
mode |
Quartz controlled
fixed frequency |
|
RF sensitivity
|
3µV for 20 dB Sinad
|
| Squelch
|
Noise control
(external contorl) |
|
Frequency Band
|
VHF high band 160~2445
MHz |
| Frequency
Stability |
± 0.005%/25°C
|
|
Modulation mode
|
FM (F3E)
|
| T.H.D
|
< 0.8%
|
|
Dynamic
|
> 100 dB
|
| AF
output level |
XLR balanced
60 mV 6.3mm (1/4”) mono phone jack unbalanced 0~300mV
|
|
Output connector |
Unbalanced 6.3mm
phone jack |
|
|
|
|
Transmitter |
|
Frequency Response |
0Hz~ 15 KHz
|
| Spurious
emission |
45 dBc |
|
RF output power
|
10mW
|
| Battery
|
1xLR6(AA)1.5V
|
|
Current drain
|
60mA
|
| Frequency
stability |
±0.005%/25°C
|
|
Modulation mode
|
FM(F3E)
|
| Carrier
frequency range |
160~245 MHz
|
|
Dynamic
|
> 100dB
|
| Pre-emphasis |
vb 50µs |
|
| |
|
| |
|
|
