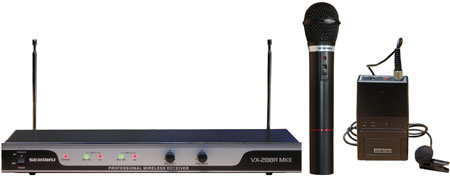

 Wireless
Microphone |
|
|
VX-288R / VXM 286TS
/ VXM 168 TLS
|
| |
|
FEATURE:
- QUARTZ LOCKED VHF
BAND RECEIVER COMPANDER SYSTEM
|
| |
|
Model |

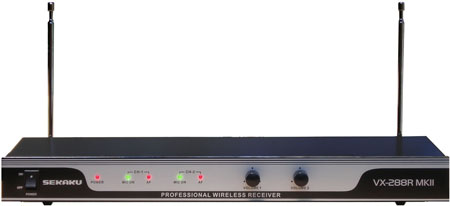

VX-288R- MKII
|
|
SPECIFICATIONS
|
| Reception mode |
Non-diversity
model |
|
Frequency band |
VHF high band 160~245
MHz |
| Frequency Stability |
±
0.005% @ 25 °C |
|
Modulation mode |
FM (F3E) |
| Max. deviation |
±
40 KHz , with limiting compressor |
|
T.H.D |
< 0.8 % |
| Dynamic
|
>
100 dB |
|
S/N Ratio |
> 80 dB |
| Frequency
Response |
50
Hz ~ 15 KHz |
|
Receiving Mode |
Quartz controlled
fixed frequency |
| RF
sensitivity |
3
µV for 20 dB SINAD |
|
Squelch |
Noise control (external
control) |

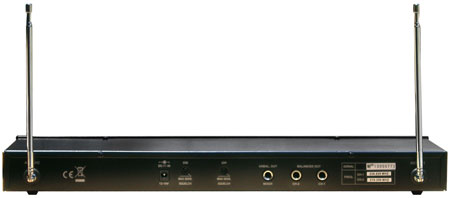

| Output Connector |
XLR
Balanced (CH 1 & 2 independent 6.3mm (1/4") mono
phone jack unbalanced (mixer) |
|
Power supply |
DC 12 V ~ 300 mA with
AC/DC Adaptor |
|
|
|
|

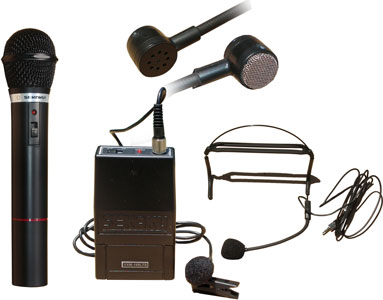

VXM 286 TS(HANDHELD)
|
|
Element |
Dynamic |
| Emission |
FM (F3E) |
|
Carrier Frequency |
160 ~ 245 MHz |
| Freq. Stability |
± 0.005% at 25°C |
|
Max. Deviation |
± 40 KHz |
| Pre- emphasis |
50 µs |
|
Spurious Em. |
45 dBc |
| RF
output |
15 mW |
|
Frequency Response |
50 Hz
~ 15 KHz |
| Dynamic
Range |
100 dB |
|
Battery |
9V |
| Usage |
6~8 Hrs |
|
Tone Freq. |
-- |
| operating temp |
-10°C ~ 60°C |
|
| |
|
| |
|
|
