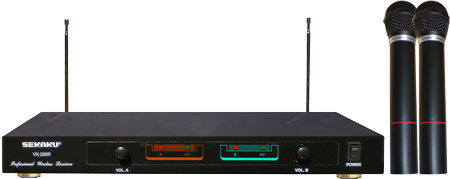

 Wireless
Microphone |
|
VX-288R / VXM 286TS
* 2
|
| |
|
FEATURE:
|
| |
|
Model |
VX-288R
|
|
SPECIFICATIONS
|
|
Type of Emission |
FM(3E) |
| Carrier Freq. |
166-245MHz |
|
RF Sensitivity |
3µ V (SINAD) |
| Freq. Stability |
±0.005% /25˚C |
|
Max Modulation |
±40KHz |
| De-emphasis |
50µs |
|
Freq. Response |
50-15KHz |
| S/N
Ratio |
>90dB |
|
Audio Distortion |
< 1% |
| Dynamic
Range |
100dB |
|
Squelch Type |
Squelch Adj. |
| Audio Mixer Output |
Hi - 0-500mV /
100KΩ
Low - 0-100mV / 600KΩ |
Operating Range
|
15 - 30M (Open Field)
|
|
VXM 286 TS(HANDHELD) |
|
Element |
Dynamic |
| Emission |
FM (F3E) |
|
Carrier Frequency |
160 ~ 245 MHz |
| Freq. Stability |
± 0.005% at 25°C |
|
Max. Deviation |
± 40 KHz |
| Pre- emphasis |
50 µs |
|
Spurious Em. |
45 dBc |
| RF
output |
15 mW |
|
Frequency Response |
50 Hz
~ 15 KHz |
| Dynamic
Range |
100 dB |
|
Battery |
9V |
| Usage |
6~8 Hrs |
|
Tone Freq. |
-- |
|
| |
|
| |
|
|
