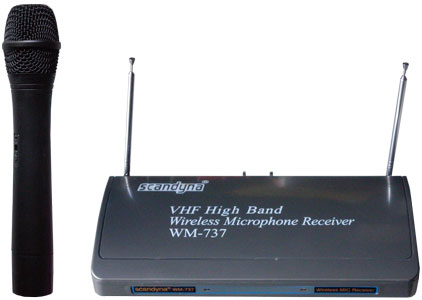

Cordless Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|
Model
|
WM 737
|
|
SPECIFICATIONS
|
|
Carrier
Frequency Range
|
170 ~ 210 MHz, VHF
HIGH BAND |
| Frequency Stability |
±
0.005% with quartz controlled |
|
Maximum Deviation
Range |
± 15 KHz with limiting
compressor |
| Frequency Response |
100
Hz ~ 15 KHz |
|
S/N Ratio |
Better Than 100 dB(A) |
| T.H.D |
Less
then 0.5 % |
|
Audio Dynamic Range |
Over 100 dB, Over
188dB with Limiting |
| Service Area |
300
meters |
|
Receiving System |
Dual Channels fixed
frequency by quartz |
| S/N Ratio |
Over
108 dB @ 15KHz deviation |
|
Image and Spurious
Rejection |
80 dB minimum
|
| Power Supply |
AC
220 V / DC 9V |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
