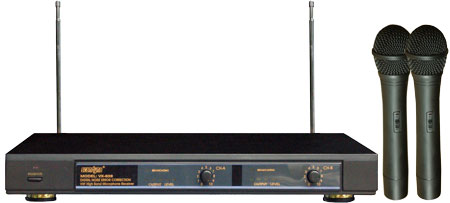

Cordless Microphone |
|
|
| |
|
FEATURE:
|
| |
|
Model |
VX 838A |
|
SPECIFICATIONS
|
|
Carrier Frequency Range |
200 ~ 270 MHz, VHF HIGH
BAND |
|
Frequency Stability |
± 0.005% with quartz
controlled |
|
Modulation Mode |
FM |
|
Maximum Deviation Range |
± 15 KHz, with limiting
compressor |
|
Frequency Response |
40 Hz ~ 20 KHz |
|
S/N Ratio |
Better Than 100 dB(A) |
|
T.H.D |
Less Than 0.5 % |
|
Audio Dynamic Range |
over 100 dB , over 18 dB
with limiting |
Service Area
|
30 Meter
|
|

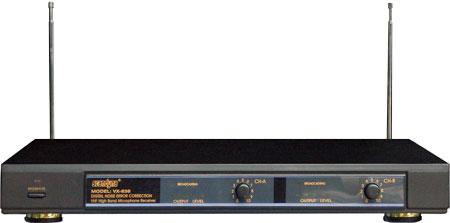

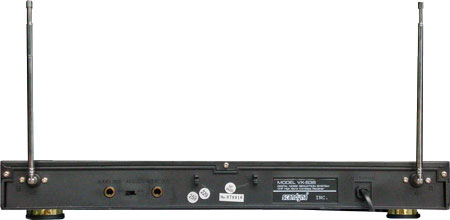

Receiver |
|
Receiving System |
Dual Channels fixed
frequency by quartz |
|
S/N Ratio |
Over 108 dB at 15KHz
deviation |
|
Image and Spurious
Rejection |
80 dB Minimum |
|
Power Supply |
AC 110 / 220 V / 50 /60 Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
