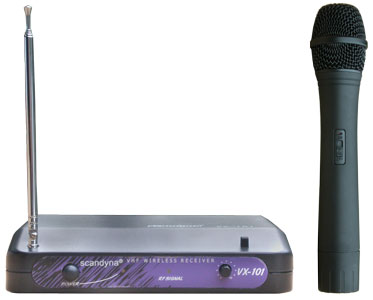

Cordless Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|
Model
|
VX 101M
|
|
SPECIFICATIONS
|
| Signal To Noise
Ratio |
Greater Than 60
dB |
|
Modulation |
FM |
| IF Frequency |
10.7 MHz |
|
AF response |
50 Hz ~ 20 KHz , 1KHz
(± 3dB) |
| T.H.D |
Less Than 1% |
|
Service Area |
30 Meters |
Power Supply
|
AC 220 V / DC
9V
|
|

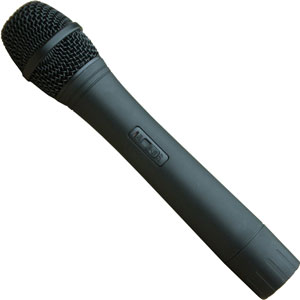

Transmitter
|
| RF Power Output |
50 mW Max. |
|
Spurious Emission |
> 55 dBµV |
| Frequency Stability |
± 0.005% with
quartz control |
|
AF Response |
50 Hz ~ 20 KHz , 1KHz
(± 3dB) |
| Battery Type |
9 Volts Zn-Mn
dry Battery |
|
Battery Life |
6~8 Hrs |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
