FM TUNER |
|
|
AUDIO / VIDEO PREAMPLIFIER
|
| |
|
FEATURE:
|
| |
|
| Model |

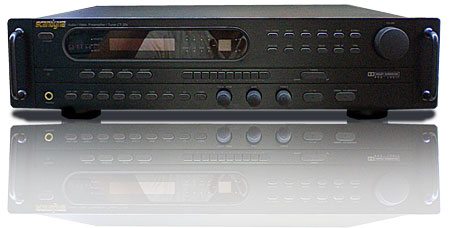

CT30X
|
|
SPECIFICATIONS
|
| Frequency Response |
20Hz ~ 20KHz ±
3dB |
|
Signal To Noise Ratio |
IHF A-Weighted > 76
dB |
| Total Harmonic
Distortion |
< 0.04% |
|
Stereo Separation |
> 70 dB @ 1KHz |
| Input Sensitivity |
(0.5V rms) 187mV |
|
Input impedance |
50 K Ω / 100pf |
Output Impedance
|
330 Ω
|
|
FM Tuner Section |
| Tuning Frequency
Range |
87.5~108 MHz |
|
Antenna Terminal
|
75 Ω Coaxial |
| IHF Usable Sensitivity |
Mono : 13.5 dBf
(1.3µV)
Stereo : 23.0 dBf (3.9µV) |
|
S/N ratio @ 65 dBf
input weigthed |
Mono : 76 dB
Stereo : 68 dB |
| Stereo Separation
65 dBf |
40 dB
@ 1KHz |
|
Frequency Response
65 dBf |
20 Hz ~ 15KHz ± 1dB @ 1KHz |
|
|
|
|
AM Tuner Section |
|
Tuning frequency range |
520 ~ 1710 KHz |
| Sensitivity (20
dB Quieting) |
Loop : 500 µV |
|
THD (5 mV/m at 30%
mod) |
0.5% |
| Selectivitiy (S/N
20dB@±10KHz ) |
25 dB |
|
Image Rejection
|
40 dB |
| IF Rejection |
60 dB |
|
S/N Ratio (A-Weighted) |
50 dB (measured) |
|
| |
|
| |
|
|
