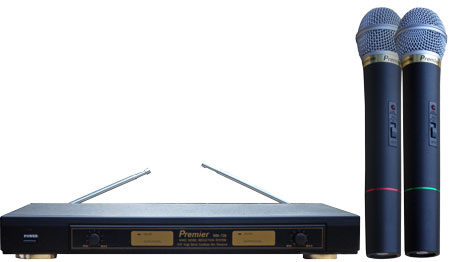

 Wireless
Micorphone |
|
|
|
| |
|
FEATURE:
|
| |
| Model |
WM 728
|
|
SPECIFICATIONS
|
| Carrier
Frequency Range |
180.050
to 220.250MHz,
VHF High band |
|
Frequency Stability |
+/-0.005% with
quartz controlled |
| Modulation
Mode |
FM |
|
Maximum Deviation
Range |
+/-15KHz, with
limiting compressor |
| Frequency
Response |
40Hz
to 20KHz. |
|
S/N Ratio |
Better than
100dB.(A) |
| T.H.D. |
Less
than 0.5% |
|
Audio Dynamic Range |
Over 100dB. Over 118dB
with limiting |
|
|
|
|
Receiver
|
|
Service Areas |
30metters |
| Receiving
System |
Dual
channels fixed frequency by quartz |
|
S/N Ratio(Receiver) |
Over 108dB at
15KHz dviation. |
| Image
and Spurious Rejection |
80dB
minimum |
|
Power Supple |
AC 110/220V,
50/60Hz. |
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
