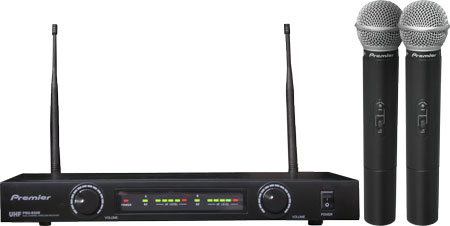

  Full Product

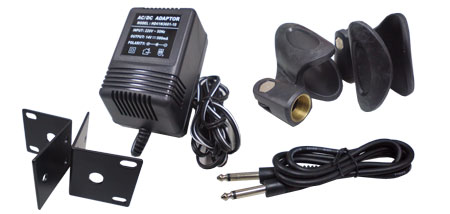

  Accessories
  Microphone
SHARE IT ›››
































   Wireless Micorphone



FEATURE:

  • UHF

 Model

PRU 8208

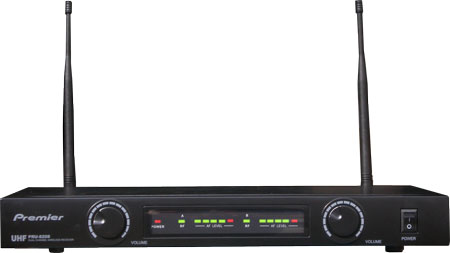

SPECIFICATIONS
RF Frequency Range 800 MHz ~ 860 MHz
Receiving Sensitivity -105 dBm (S/N :-12dB 25 KHz)
Image & Spurious Rejection > 70 dB
Signal / Noise Ratio > 85 dB
Border Upon Channel Rejection > 70 dB
T.H.D < 0.5 %
Audio Output Level 0~+ 300mV
Power Requirements AC 110 ~ 240 V / 50 Hz ~ 60 Hz

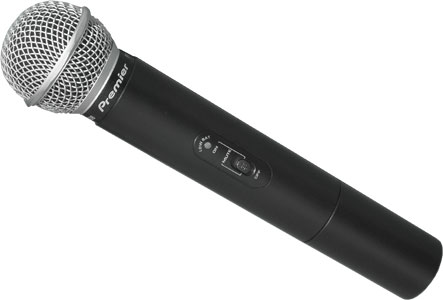

Hand-Held Transmitter
RF Frequency Range 800 MHz ~ 970 MHz
RF Output > 10 dBm
Modulation Type FM
Max Deviation + 40 KHz
Spurious Emission > 55 dBc
Nominal Current Drain < 40 mA
Power Requirements 9V DC
