DVD Player |
|
|
|
| |
FEATURE:
| · |
DIVX 5xx |
· |
SVCD |
· |
VCD |
| · |
DVCD |
· |
CD |
· |
MP3 |
| · |
KODAK CD |
· |
XVID |
· |
MPEG 4 |
| · |
HDCD |
· |
JEPG |
· |
USB
|
|
| |
|
Models
|

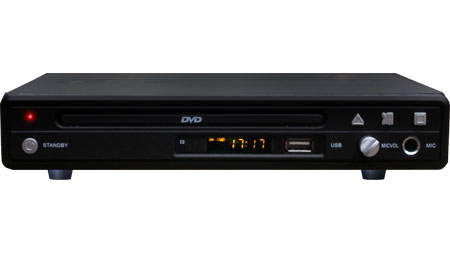

DVD 6810 2.0 |
|
SPECIFICATIONS
|
| Frequency
Response |
20
Hz ~ 20 KHz |
|
S/N Ratio |
> 90 dB |
| Total
Harmonic distortion |
<
0.0025% |
|
Power requirements |
AC 127 ~ 220 Volt,
50/60 Hz |
| Power
consumption |
15
W |
|
Video Standard |
NTSC / PAL / AUTO |
|
|
|
|
Video Output |
|
RCA Pin jack |
1.0 V(p-p) / 75 Ω,
Sync Negative polarity |
| S-video
|
Output
connector (separate Y,C signal output connector) |
|
Y output |
1.0V (p-p) 75 Ω, Sync
negative polarity |
| C
output |
0.286V
(p-p) 75 Ω |
| |
|
|
Audio output |
| Audio |
2 channel output |
|
RCA |
pin 2 jack |
| Coaxial
|
0.5 V(p-p) / 75Ω
RCA pin jack x 1 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
