 Karaoke
Amplifier |
|
|
Echo
Mixer
|
|
|
| |
|
FEATURE:
|
| |
|

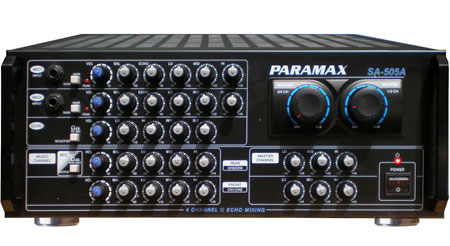

Model
|
SA - 505A
|
|
SPECIFICATIONS
|
|
RMS OUTPUT (1KHz ,
4 Ω ) |
480W 2 channel |
| Mic
Input Sensitivity |
10
mV |
|
External Device Sensitivity |
150 mV |
| S/N
Ratio |
> 95dB |
|
T.H.D |
0.01% |
| Frequency
Band |
20Hz
~20 KHz |
|
Mic Tone Adjustment |
80Hz + 15 dB
3.5 KHz + 8 dB
12 KHz + 15 dB |
| Music
Tone Adjustment |
80
Hz + 15 dB
1.2 KHz + 8 dB
12 KHz + 15 dB |
|
Echo Tone Adjustment |
80 Hz + 15d
B
12 KHz + 15 dB |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
