 Karaoke
Amplifier |
|
|
Surround
Echo Mixing
|
|
|
| |
|
FEATURE:
- 2 Stereo input
- MIC Out high,low
- PRE IN/OUT
- Line, REC Output
- High Efficiency
- 4 Mode Surround
System Select
|
| |
|

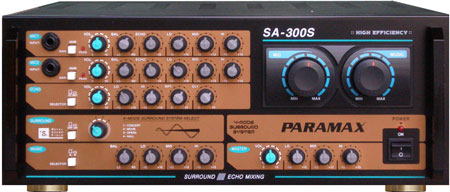

Model
|
SA - 300S
|
|
SPECIFICATIONS
|
|
RMS Output 1Khz, 4
Ω: |
300 W (150 W / CH) |
| MIC Input Sensitivity |
10 mV |
|
External Devices Sensitivity |
150 mV |
| Signal To Noise
Ratio |
95 dB(With IHFA Filter) |
|
T.H.D (1 KHz, AUX
150 mV Input ) |
0.1 % |
| Frequency Band |
20 Hz ~ 20 KHz |
|
MIC tone adjustment |
80 Hz ± 15dB |
| |
3.5 KHz ± 8dB |
|
|
12 KHz ± 15 dB |
| Music tone adjustment |
80 Hz ±
15 dB |
|
|
1.2 KHz ± 8 dB |
| |
12 KHz ± 15 dB |
|
Echo tone adjustment |
80 Hz ± 15 dB |
| |
12 KHz ± 15 dB |
|
Power source
|
AC 220 V/ 50 Hz |
| Electricity Consumption |
700 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
