 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|

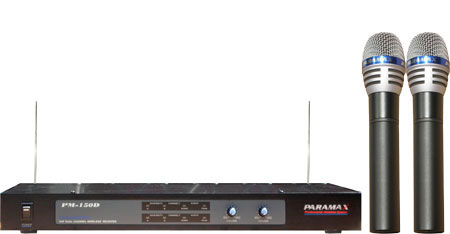

Model
|
PM 150 D
|
|
SPECIFICATIONS
|

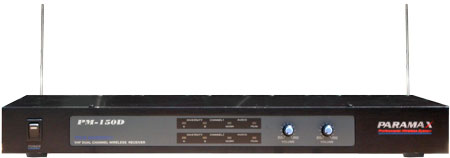

| Receiver
Model |
Diversity |
|
Carrier Frequency |
220 ~ 260 MHz |
| Frequency
Steadying |
30
PPM |
|
Sensitivity |
3µV 30 dB S/N |
| F/N
Ratio |
80
dB |
|
P/N Ratio |
70 dB |
| Audio
output |
1/4"
, 3-pin XLR (0~774mV) |
|
Antenna |
BNC |
|
|
|
|

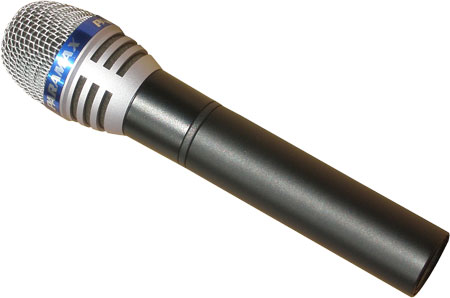

Transmitter
|
|
Carrier Frequency |
220 ~ 260 MHz |
| Frequency
Steadying |
30
PPM |
|
Modulation Model |
FM |
| Nominal
Deviation |
15
KHz, max 30 KHz |
|
Output Power |
30 mW |
| RF
squelch |
>
50 dB |
Battery
|
9V layers style
|
|
System
|
|
Audio Frequency Response |
50 ~ 16 K Hz |
| S/N
Ratio |
>
100 dB |
|
T.H.D |
< 1% |
|
| |
|
| |
|
|
