5.0 Speaker System |
|
|
|
| |
RADIUS SPEAKER SYSTEM

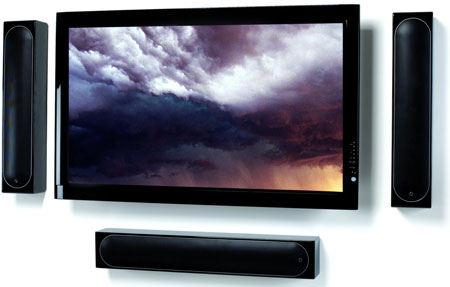

The slender Radius 225
'Plasma' is a versatile loudspeaker, which by virtue
of its very shallow depth is ideal for use with slim
video displays or Plasma TVs, as a centre channel or
main speaker. The sheer quality of its design provides
the wonderful accuracy of Monitor Audio's reference
speakers, but it's impressive size-defying bass performance
can be further extended with the addition of Radius
active subwoofer. Use the R225s with the R360 to create
a compact, perfectly matched yet sonically exhilarating
audio/video speaker system. Supplied with full-length
oval black and silver grilles( White grille option with
white lacquer product), and in the comprehensive Radius
Range of Finishes, the Radius 225 can be customized
to complement its environment from wall mounted positions,
via the slim-profile bracket supplied, or from the desktop
using the optional stand.
|
| |
|
FEATURE:
|
| |
|
Model
|
Radius 225
|
|
SPECIFICATIONS
|
|
Frequency Response |
55 Hz ~ 25 KHz |
| Sensitivity (1W@1M) |
90 dB |
|
Impedance |
8 Ω |
| Power handling
Single (R.M.S) |
120 W |
|
System Power Handling
(R.M.S) |
140 W |
| Maximum SPL |
108 |
|
Recommended Amp Requirements |
40~140 |
| Bass Alignment |
Front Ported bass
reflex |
|
Drive unit Complement
Bass |
2 x 101mm(4")MMP@2
(Next generation Metal Matrix Polymer) |
| Drive unit complement
Tweeter |
1 x 25mm(1") C-CAM®
Gold Dome |
|
External Dimensions
(cm) |
61 H x 12 W x 10.5
D |
| External Dimensions
(inch) |
24 H x 4¾ W x
4⅛
D |
|
Individual Weight
(Kg) |
4.2 Kg |
| Individual Weight
(lb) |
9 ¼ lb |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
