 5.0
Speaker System |
|
|
 |
| |

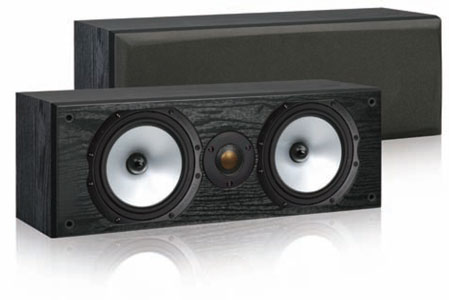

MONITOR REFERENCE CENTRE SPEAKER
For the MR Centre, we've demolished the limitations of entry-level design by creating a speaker
that not only reproduces voice with unfailing accuracy, but extends this performance to accommodate
bass frequencies as well. This means the MR Centre will perform brilliantly as a centre and surround speaker,
underpinned by the MRW-10 subwoofer. Its system of twin 5.5" MMP® II drivers, 1" C-CAM® tweeter and
upgraded crossover matches perfectly with the system architecture of other MR series speakers for
pin-point imaging at any location.
|
| |
|
FEATURE:
|
| |
|
Model |
Monitor Reference CTR |
|
SPECIFICATIONS
|
|
Frequency Response |
60 Hz ~ 30 KHz |
|
Sensitivity (1 W @ 1M) |
91 dB |
|
Nominal Impedance |
6 Ω |
|
Power Handling Single (RMS) |
120 W |
|
Recommended Amp. Requirements |
20-120 W |
|
Bass Alignment |
Sealed Cabinet |
|
Drive Unit Complement |
2 x 5.5" MMP®II
Bass Mid-range
1 x 1" C-CAM® gold dome tweeter |
|
External Dimensions
(H x W x D) |
164mm x 460mm x 165mm |
|
Weight |
6.2 Kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
