Floorstand Speaker |
|
|
|
| |

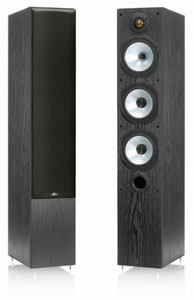

MONITOR REFERENCE FLOORSTAND SPEAKER
Embraced by a beautifully
slim floor standing cabinet, the MR6's 21/2 way system
comprises a 1" C-CAM® tweeter, supported by two 6.5"
MMP® II bass drivers and a single 6.5" MMP II bass/mid-range
driver mounted within dedicated chambers. The twin chamber
acoustic structure provides increased bass extension
while maintaining a high overall sensitivity, and the
bass drivers themselves have four layers coils to offer
improved power handling and dynamics. The neutral character
of a dedicated 6.5" mid-range driver completes a genuinely
dynamic wide-bandwidth design, powerful but always alive
to the rhythmic pulse of the music.
|
| |
|
FEATURE:
|
| |
|
Model
|
Monitor Reference
6
|
|
SPECIFICATIONS
|
|
Frequency Response |
33 Hz ~ 30 KHz |
| Sensitivity |
90 dB |
|
Nominal Impedance |
6 Ω |
| Power Handling
(RMS) |
150 W |
|
Recommended Amp. Requirements |
40~150W |
| Bass Alignment |
Bass reflex-Ported
front and rear |
|
Drive Unit Complement |
2 x 6.5" MMP II bass
driver |
| |
1 x 6.5" MMP II
bass mid-range |
| |
1 x 1" gold dome C-CAM
tweeter |
| External Dimensions |
970 x 200 x 300mm |
|
Weight |
17.2 Kg |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
