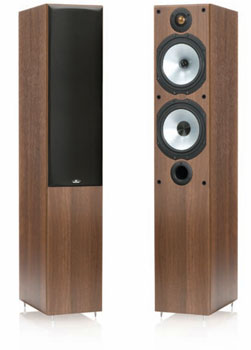

MONITOR REFERENCE FLOORSTAND SPEAKER
The MR 4 has a svelte
cabinet profile, housing potent 6.5" bass/mid-range
driver designs in a 21/2-way system of dedicated driver
chambers, reinforced by comprehensive cabinet bracing
to provide a remarkable blend of punch, deep bass extension
and control. Overall frequency response is typical flat
and the neutral balance is augmented by an extended,
well-define bass performance. The floor-level mounted
terminal panel allows for easy access and avoids unnecessary
trailing cable lengths.
|
| |
|
FEATURE:
|
| |
|
Model
|
Monitor Reference
4
|
|
SPECIFICATIONS
|
|
Frequency |
36 Hz ~ 30 KHz |
| Sensitivity |
91 dB |
|
Nominal Impedance |
6 Ω |
| Power Handling
(RMS) |
150 W |
|
Recommended Amp. Requirements |
30~120W |
| Bass Alignment |
Bass reflex-Ported
front and rear |
|
Drive Unit Complement |
1 x 6.5" MMP II bass
driver |
| |
1 x 6.5" MMP II
bass mid-range |
| |
1 x 1" gold dome C-CAM
tweeter |
| External Dimensions |
850 x 185 x 255
mm |
|
Weight |
12 Kg |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
